CONSOLE OPEN MOUNT UNICA SINGLE WHITE

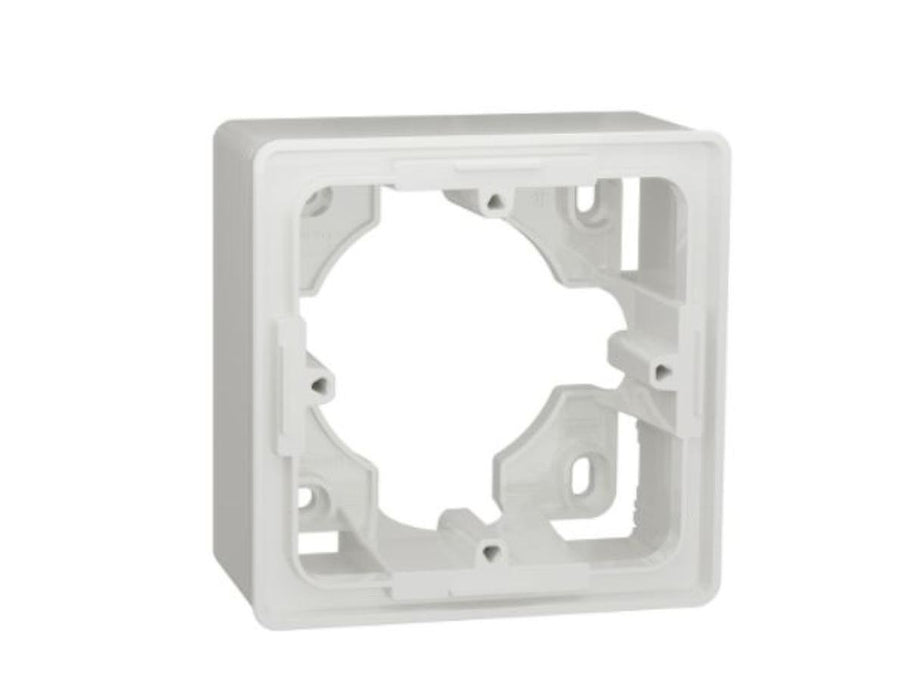

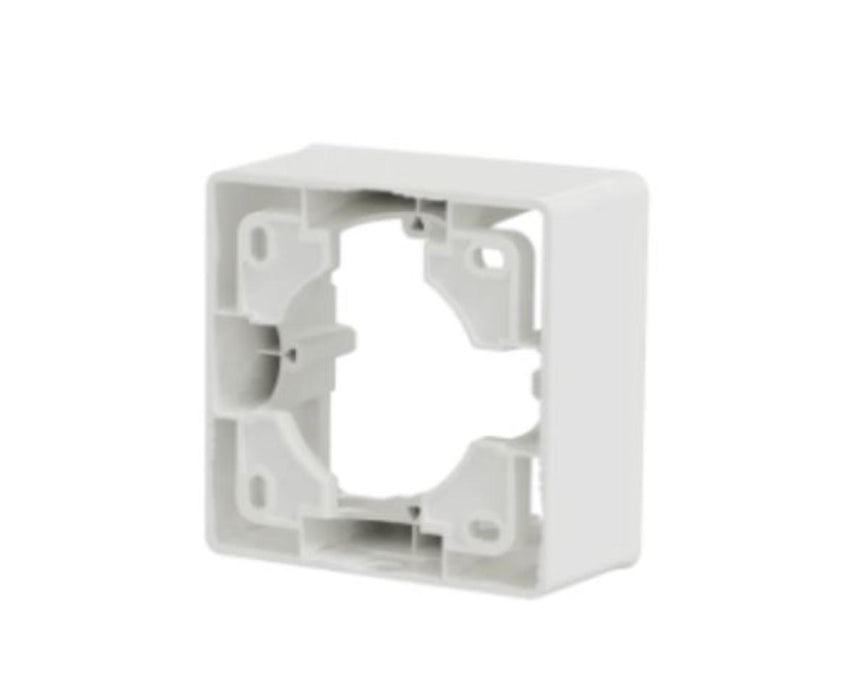

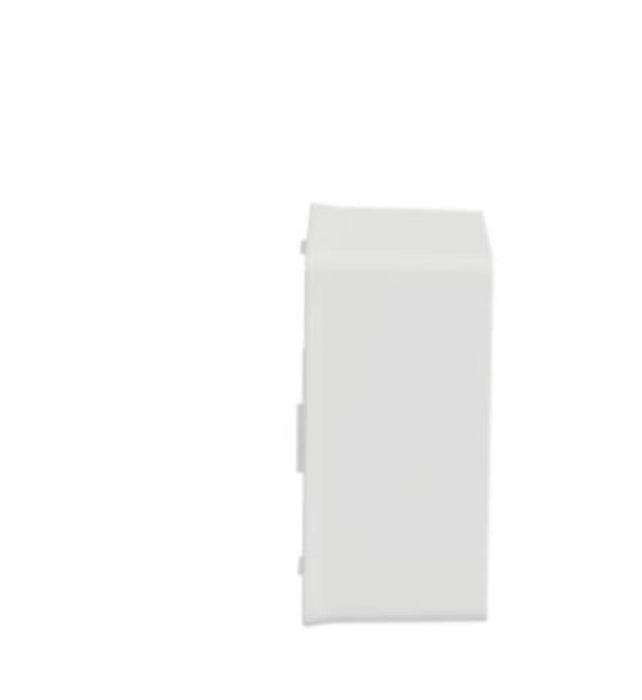

Schneider Electric New Unica NU800218 is a flush-mounting box without frame in white colour. This device is (compatible with) Unica. This mounting box belongs to the Unica Studio aesthetic group. Width is 83 mm, height 83 mm, depth 40 mm. The product weighs 0.052 kg. It is available in 1 x 2 modules. This is a surface-mounted device. It is also halogen-free, halogen-free, which is beneficial for your health. Made of ABS (acrylonitrile butadiene styrene) material, this mounting box is quite reliable and durable. It also reaches protection level IK04, which can help protect against impact. Being environmentally friendly, this device is resistant to ultraviolet rays, acetone, alcohol, ammonia, bleach, liquid soap, oil, petrol and window cleaning fluid. This mounting box also does not contain SVHC (substances of very high concern). The new Unica includes a range of new designs, colours and materials. Users enjoy a beautiful design that matches their style, and innovative products.

Product type or component: Mounting bracket
Mounting direction: Horizontal/vertical
Frame type: Frameless
Number of modules: 1 module
Fixing method: Screws
Colour shade: White (RAL 9003)
Cable entry: 4 ports
Material: Thermoplastic ABS-UV
Stabilised: Cover frame

Standards:
IEC 60884-1
IEC 60669-1

Width: 83 mm
Height: 83 mm
Depth: 40 mm
Net weight: 0.052 kg

Chemical resistance:
Resistant to alcohol (70%)
Resistant to alcohol (96%)
Resistant to A-lactic acid
Resistant to diluted quaternary ammonium
Resistant to diluted bleach
Resistant to diluted ammonia
Resistant to soapy water
Resistant to crystal cleaning agent
Resistant to 10-volume hydrogen peroxide
Resistant to hexane
IK protection degree: IK04
IP protection degree: IP21D
