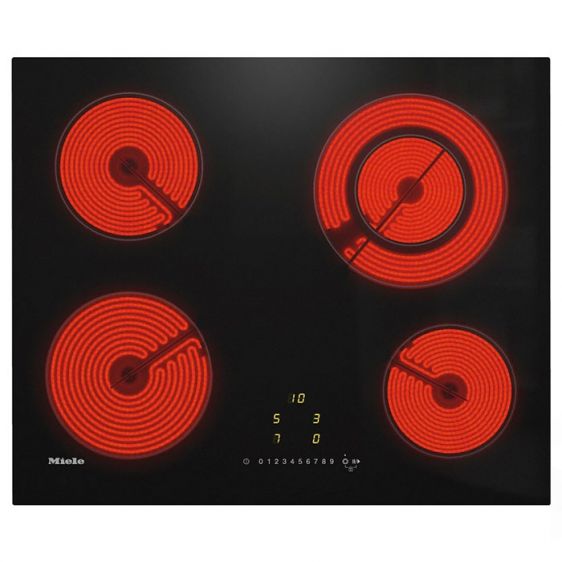

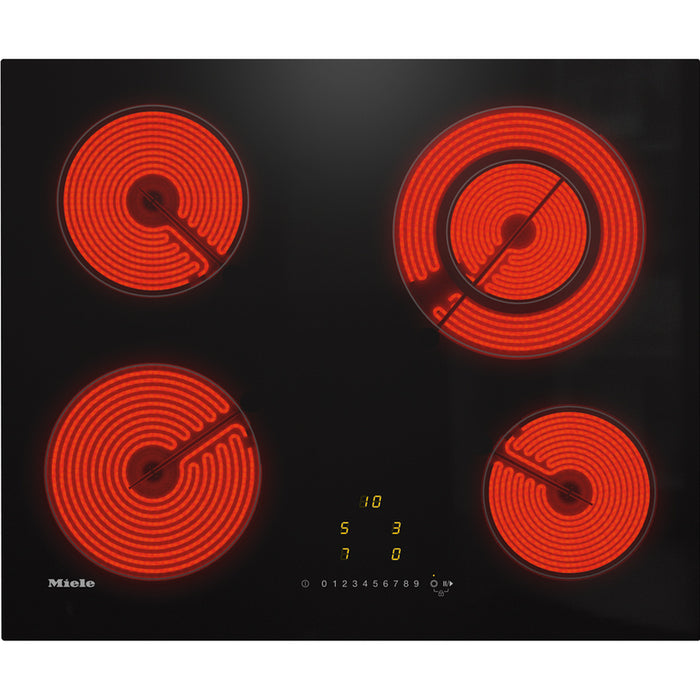

Built-in worktop MIELE KM 6520 FL

Technical specifications:

Warm-up type

• Heating type Electric
• Construction type
• Oven-independent •

Design

• Elegant glass ceramic surface •
• Concealed installation •

Heating zone data

• Number of hotplates 4
• Heating zone
• Diameter in mm Ø 180
• Rated power in W 1800
• Heating zone
• Diameter in mm Ø 160
• Rated power in W 1500
• Heating zone
• Rated power in W 750/2200
• Heating zone
• Diameter in mm Ø 145
• Rated power in W 1200

User convenience

• Call function •
• Stop & Go function •
• Reminder timer •
• Automatic shut-off for all hotplates •
• AutoBoost •
• Individual setting options (e.g. beep tones) •
• Indicators
• Digital display for power level •

Efficiency and sustainability

• Use of residual heat •
• Convenience of cleaning
• Easy-to-clean ceramic surface •

Safety

• Security slot •
• Lock function •
• Power-on lock •
• Error tracking •
• Overheating protection •
• Cookware protection •
• Residual heat indication •

Technical characteristics

• Dimensions in mm (width) 592
• Dimensions in mm (depth) 492
• Installation height with electrical installation box in mm 40
• Internal cutout dimensions in mm (width) with concealed installation 570
• Internal cutout dimensions in mm (depth) with concealed installation 470
• External cutout dimensions in mm (width) with concealed installation 596
• External cutout dimensions in mm (depth) with concealed installation 496
• Voltage in V 230
• Total included load in kW 6,700
• Weight in kg 8
• Frequency in Hz 50-60
• Cable length in m 1.4
• Standard accessories
• Razor blade scraper •
• Connecting cable •

Warranty: 25 months
