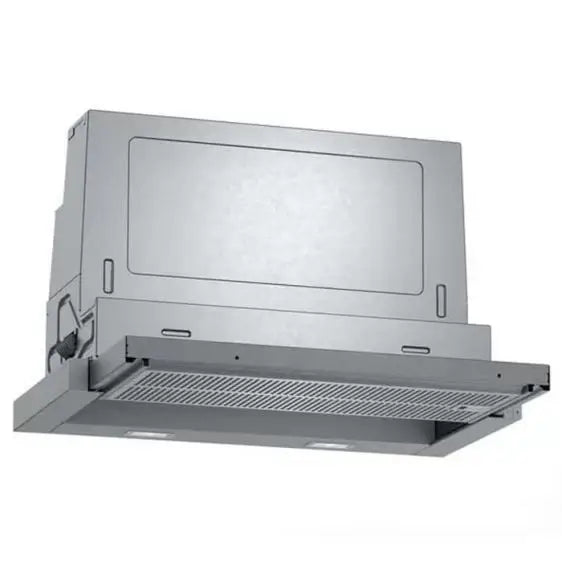

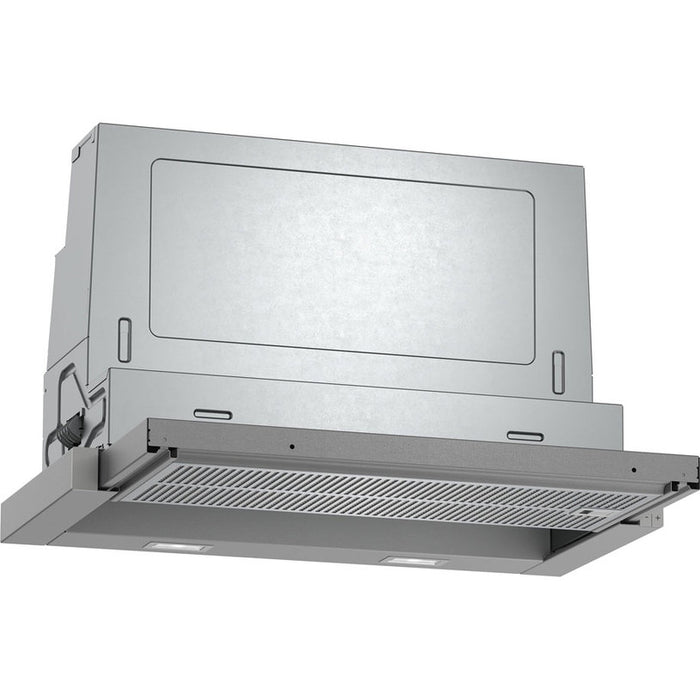

Built-in hood NEFF D46ED52X1

Technical specifications:

• Variant
• 60 cm wide
• Device color: metallic gray
• For installation in a 60 cm wide wall cabinet
• Two operating modes: exhaust air or air circulation
• For recirculated air mode, an additional activated carbon kit or CleanAir module is required.

Comfort

• Classic buttons
• Control: electronic with Classic buttons and LED display
• Control: electronic
• Classic buttons (3 power levels with additional intensive level), LED display
• Control: electronic

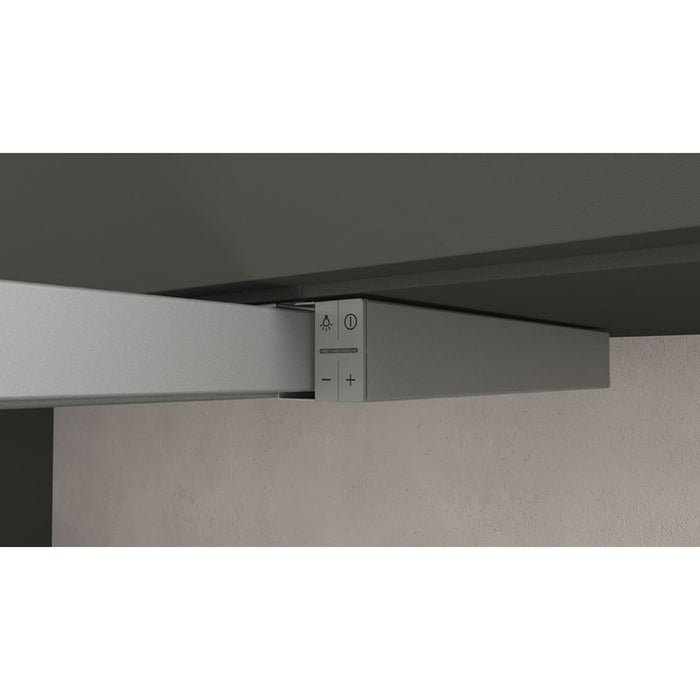

• Classic buttons for power levels and lighting
• 3 power levels with additional intensive setting
• Intensive level with automatic activation every 6 minutes
• Automatic switch-off of the intensive setting after 10 minutes

Features

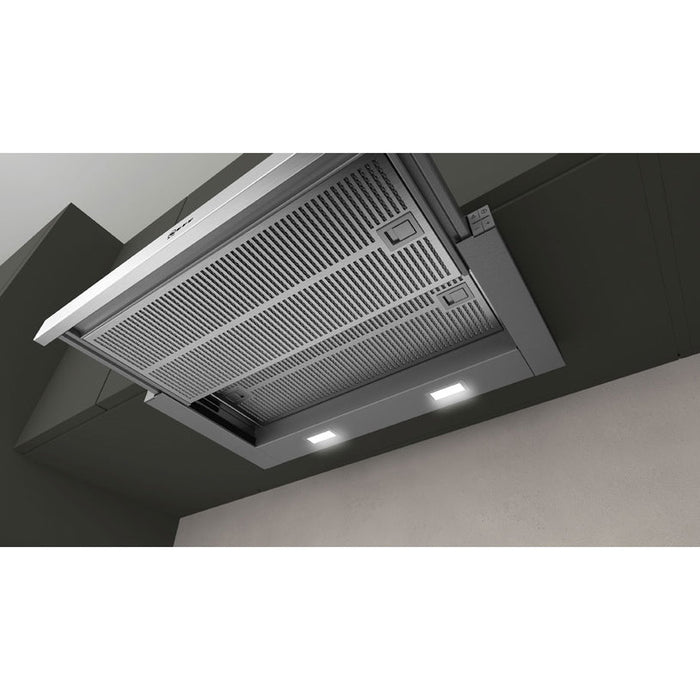

• Workplace lighting with 2 x 1.5 W LED module
• Color temperature: 3500 K
• Illumination intensity: 294 lux
• Stainless steel filter cover; dishwasher safe

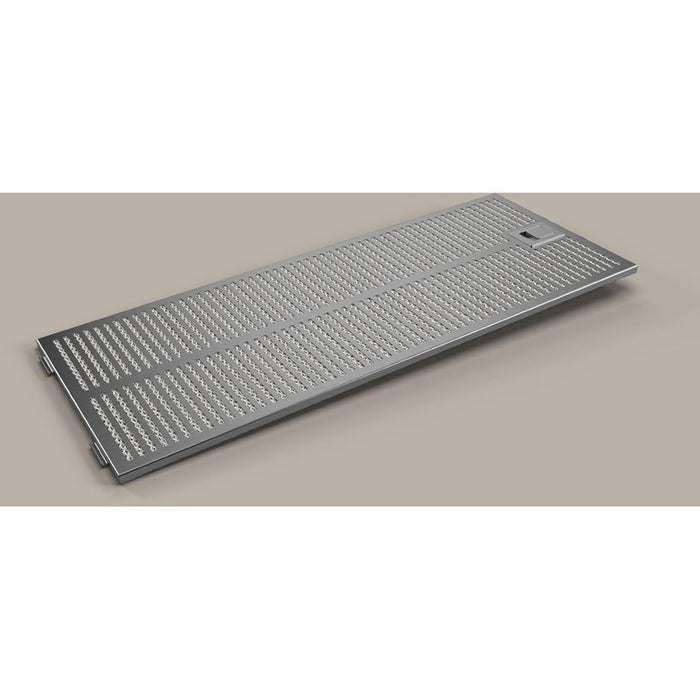

• Metal grease filter, suitable for cleaning in a dishwasher

Power

• Capacity according to EN 61591 ø 15 cm:
• At the highest normal rate 399 m³/h;
• At intensive degree 728 m³/h
• Capacity (air extraction) according to EN 61591:
• At the highest normal setting 399 m³/h; at the intensive setting 728 m³/h
• Air extraction capacity according to EN 61591 max. 399 m³/h
• Noise min./max. at standard level: 41/53 dB
• Energy-saving operation through efficient BLDC technology
• Energy-saving operation through efficient BLDC technology

Planning and installation information

• Telescopic attachment
• Dimensions (HxWxD): 426 x 598 x 290 mm
• Built-in dimensions (HxWxD): 385 x 524 x 290 mm
• For air duct with Ø 150 mm (Ø 120 mm supplied)
• With check valve
• Power cord length: 1.75 m
• Telescopic pull-out without decorative strips (decorative strips are available as an additional accessory)

Consumption

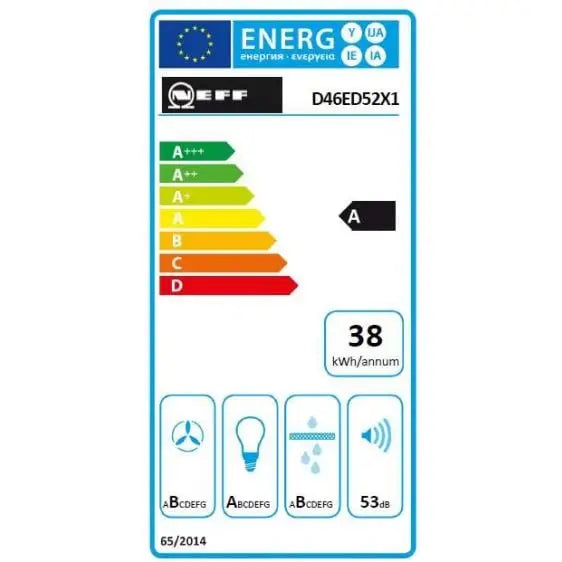

• Energy class: A (on an energy efficiency scale from A++ to E)
• Average energy consumption: 37.9 kWh/year
• Ventilation efficiency class: B
• Lighting efficiency class: A
• Grease filter efficiency class: B
• Power supply: 144 W

Warranty: 24 months
