Built-in hood BOSCH DFM064W54

Technical specifications:

General

• Width 60 cm
• Color Silver metallic
• Installation typology Semi-recessed
• Operating mode Can be retrofitted
• Total motor power 105 W
• Type of devices for setting and signaling switches
• Number of speed settings 3
• Maximum extraction 388 m³/h
• Sound power at max. speed (2010/30/EC) 67 dB
• Maximum recirculation 257 m³/h
• Sound power at max. speed (recirculation) 69 dB
• Grease filter material Washable aluminum
• Energy efficiency class (2010/30/EC) B
• Total annual energy consumption 40.3 kWh/year

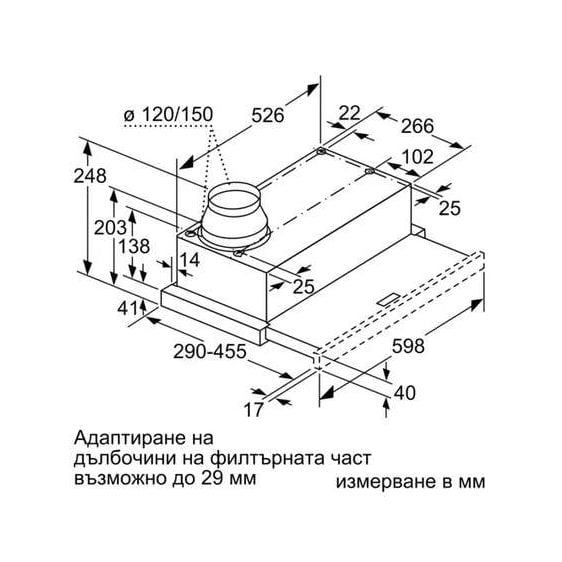

Dimensions

• product width 598 mm
• Appliance depth 290 mm
• min. distance above electrical outlet 430 mm
• Min. distance above gas hob 650 mm
• Air outlet diameter 120 / 150 mm
• Air return valve yes
• Power cord length 175.0 cm
• Net weight 9.0 kg
• Unit height, extract air, max. 203 mm
• Unit height, extract air, min. 203 mm
• Unit height, recirculation, max. 203 mm
• Unit height, recirculation, min. 203 mm
• Min. installation width 526 mm
• Max. installation width 526 mm
• Installation depth 290 mm

Warranty: 24 months
