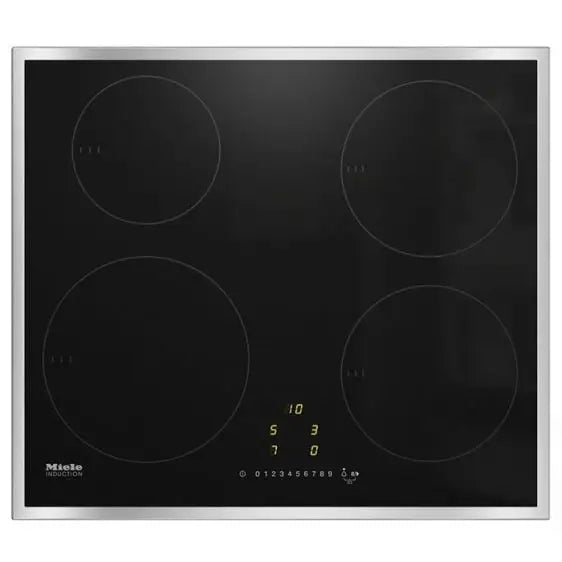

Built-in counter MIELE KM 7201 FR

KM 7201 FR Built-in induction hob with touch control and 4 round cooking zones at an attractive base price

• Easy operation – EasySelect
• 4 round cooking zones in different sizes
• 574mm width with stainless steel frame for surface mounting
• The shortest heating time – TwinBooster function

Technical specifications:

Warm-up type

• Heating type Induction

Construction type

• Oven-independent •

Design

• Elegant glass ceramic surface •
• Universal stainless steel frame •

Heating zone data

• Number of hotplates 4
• Maximum number of pans 4

Heating zone

• Size in mm Ø 160-220
• Max. rated power in W 2300
• Max. rated power in W with Booster 3000
• Max. rated power in W with TwinBooster function 3650

Heating zone

• Size in mm Ø 100-160
• Max. rated power in W 1400
• Max. rated power in W with Booster 1700
• Max. rated power in W with TwinBooster function 2200

Heating zone

• Max. rated power in W 1850
• Max. rated power in W with Booster 2500
• Max. rated power in W with TwinBooster function 3000

Heating zone

• Size in mm Ø 140-190
• Max. rated power in W 1850
• Max. rated power in W with Booster 2500
• Max. rated power in W with TwinBooster function 3000

User convenience

• Display color Yellow
• Constant pan recognition •
• Pot/pot size sensors •
• Stop & Go function •
• Call function •
• Reminder timer •
• Automatic shut-off for all hotplates •
• AutoBoost •
• Keeping food warm •
• Individual setting options (e.g. beep tones) •

Convenience of cleaning

• Easy-to-clean ceramic surface •

Safety

• Safety shutdown •
• Lock function •
• Power-on lock •
• Built-in cooling fan •
• Overheating protection •
• Residual heat indication •

Technical characteristics

• Dimensions in mm (width) 574
• Dimensions in mm (height) 51
• Dimensions in mm (depth) 504
• Installation height with electrical installation box in mm 48
• Slot dimensions in mm (width) with surface mounting 560
• Cutout dimensions in mm (depth) with surface mounting 490
• Weight in kg 10
• Total included load in kW 7,300
• Voltage in V 230
• Frequency in Hz 50-60
• Connection cable length in m 1.4
• Standard accessories
• Connecting cable •

Warranty: 25 months
