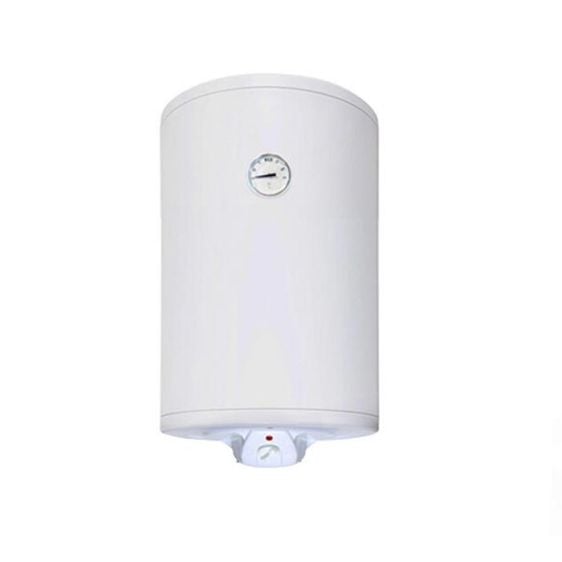

Boiler TEDAN Standard BT 80l inox

• Vertical installation
• Water tank made of high-quality carbon steel with EN1.4401 grade with a thickness of 1.2 mm to 1.8 mm, tested at 12 Bar pressure.
• The stainless steel we use in Tedan water heaters is from proven manufacturers and of the highest quality.
• Thermal insulation made of CFC-free polyurethane foam with a thickness of 25 to 49 mm (manufactured by Bayer - Germany).
• Thermostat with frost protection (manufactured by Thermowatt - Italy) and maximum operating temperature of 65°C.
• Three-component magnesium anode with up to 50% longer life, which can be dismantled and subsequently replaced.
• Elliptical flange to achieve higher reliability and safety of the device.
• Protection class of the water heater IP: X4.
• Pipe diameter (HVAC) 1/2”.

Technical specifications:

• Vertical installation
• Volume V 80
• Maximum power W 2000
• Heating time (minutes, ΔT=45°C) min ~ 175
• Weight Kg 24.5
• Height mm 900
• Diameter mm 419
• Maximum operating pressure bar 6.00
• Power supply V 220~230
