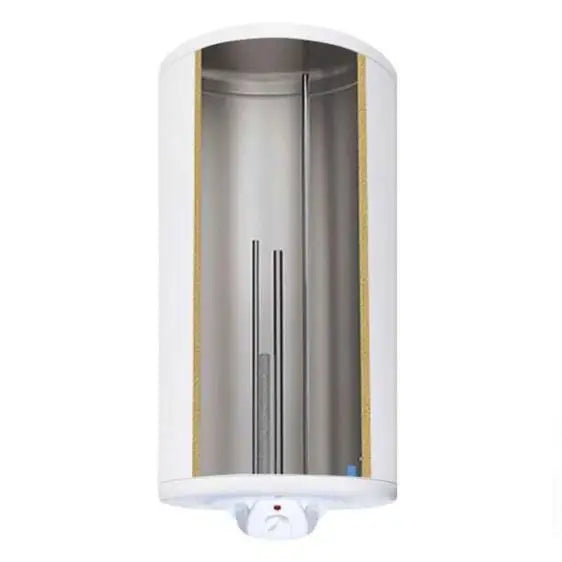

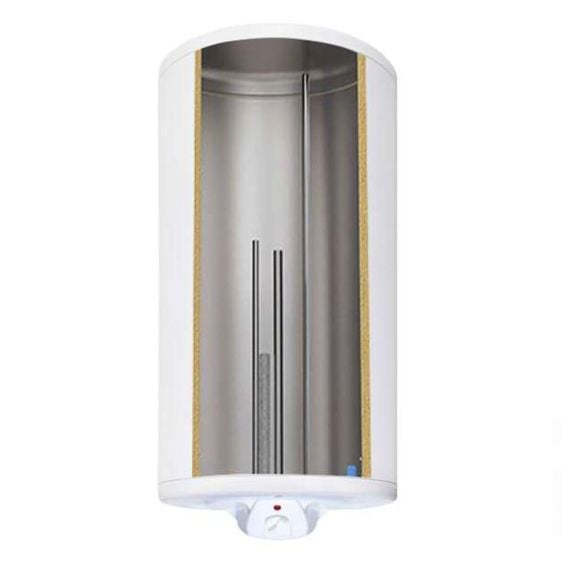

Boiler TEDAN Klassa INOX 120 liters, vertical, stainless, 2 kW

Technical specifications:

Description

• Product code: 121200001

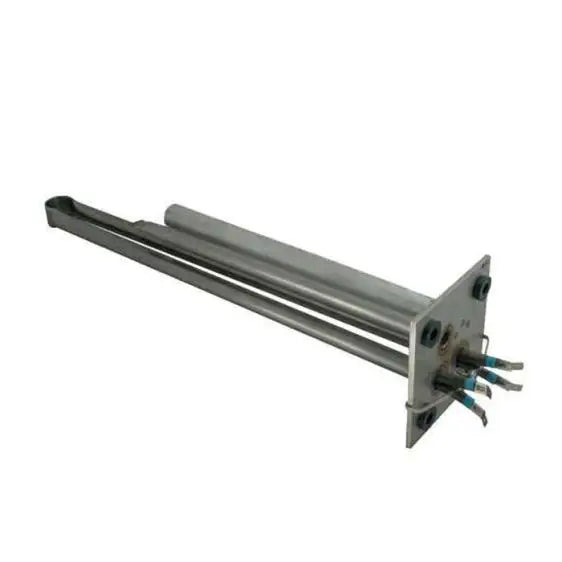

• Dry heater with low surface power, suitable for areas with calcareous water where scale accumulation is high.

• Vertical installation
• Water tank made of high-quality carbon steel with EN1.4401 grade with a thickness of 1.2 mm to 1.8 mm, tested at 12 Bar pressure.
• The stainless steel we use in Tedan water heaters is from proven manufacturers and of the highest quality.
• Thermal insulation made of CFC-free polyurethane foam with a thickness of 25 to 49 mm (manufactured by Bayer - Germany).
• Thermostat with frost protection (manufactured by Thermowatt - Italy) and maximum operating temperature of 65°C.
• Three-component magnesium anode with up to 50% longer life, which can be dismantled and subsequently replaced.
• Elliptical flange to achieve higher reliability and safety of the device.
• Protection class of the water heater IP: X4.
• Pipe diameter (HVAC) 1/2”.

Features

• vertical installation
• volume L 120
• water tank material stainless steel / inox
• heater type dry
• heater power W 2000
• number of support plates 2
• operating voltage V ~ 220 - 230
• single-phase power supply
• thermostat yes
• maximum working pressure bar 6
• type of insulation: freon-free polyurethane foam
• insulation thickness mm 25 - 49
• number of thermostats 2
• pressure regulator yes
• indicator for working device yes
• anode tester no
• magnesium anode protection
• IP24
• frost protection yes
• safety valve yes, in the device packaging
• height cm 111.0
• diameter cm 45.0
• weight (with packaging) kg 34.0

Warranty: 12 years
