Boiler TEDAN Ceramic inox 100 liters, 2kw

Technical specifications:

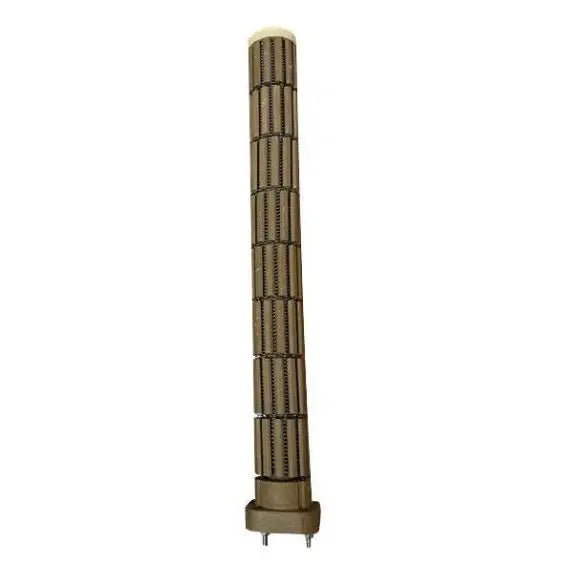

• Dry ceramic heater with low surface power, suitable for areas with aggressive and/or calcareous water, where scale accumulation is high.

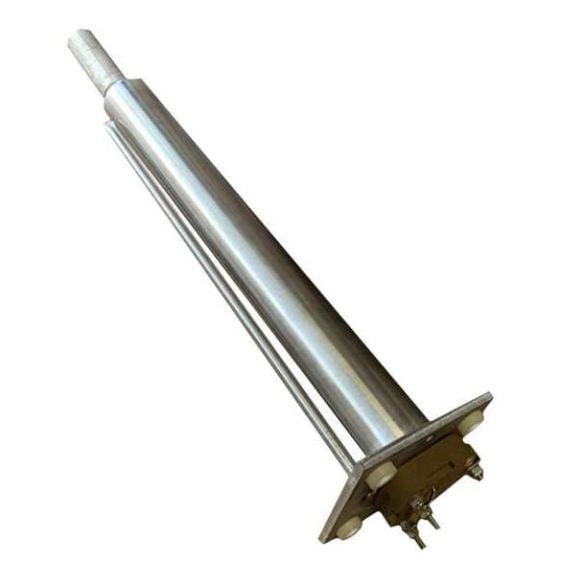

• The ceramic heating element is located in a stainless steel boot/barrel and has no direct contact with the water
• Vertical installation
• Water tank made of high-quality carbon steel with EN1.4401 grade with a thickness of 1.2 mm to 1.8 mm, tested at 12 Bar pressure.
• The stainless steel we use in Tedan water heaters is from proven manufacturers and of the highest quality.
• Thermal insulation made of CFC-free polyurethane foam with a thickness of 25 to 49 mm (manufactured by Bayer - Germany).
• Thermostat with frost protection (manufactured by Thermowatt – Italy)
• Magnesium anode with up to 50% longer life, which can be dismantled and subsequently replaced.
• Square flange to achieve higher reliability and safety of the device.
• Protection class of the water heater IP: X4.
• Pipe diameter (HVAC) 1/2”.

Features

• Vertical installation
• Volume V 100
• Maximum power W 2000
• Warm-up time (minutes, ΔT=45°C) min ~ 156
• Weight kg 29.7
• Height mm 1010
• Diameter mm 454
• Maximum operating pressure bar 6.00
• Power supply V 220~230

Warranty: 12 years
