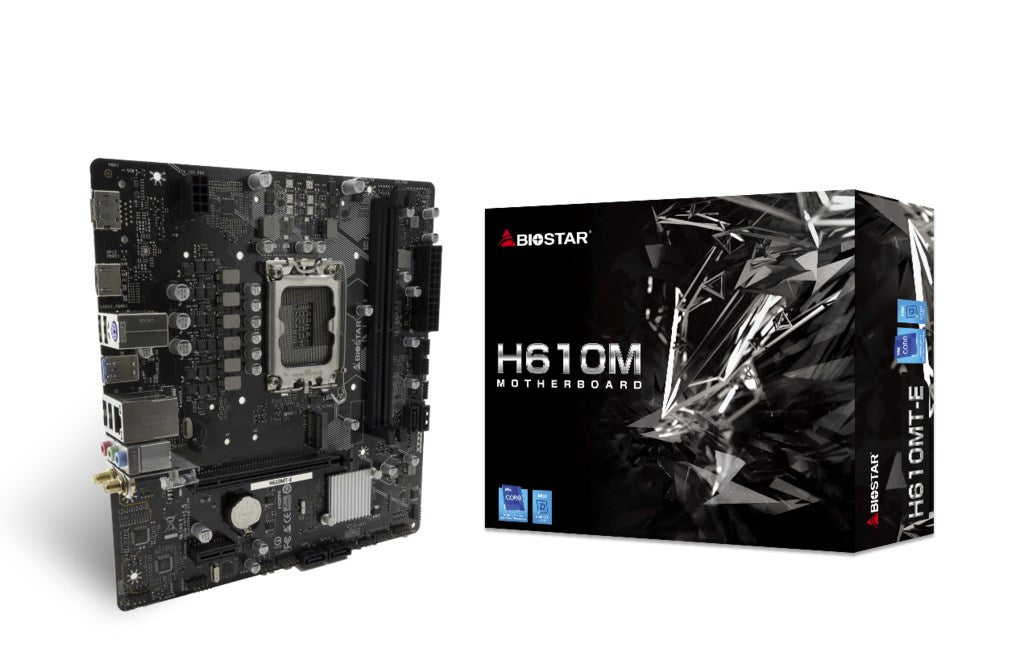

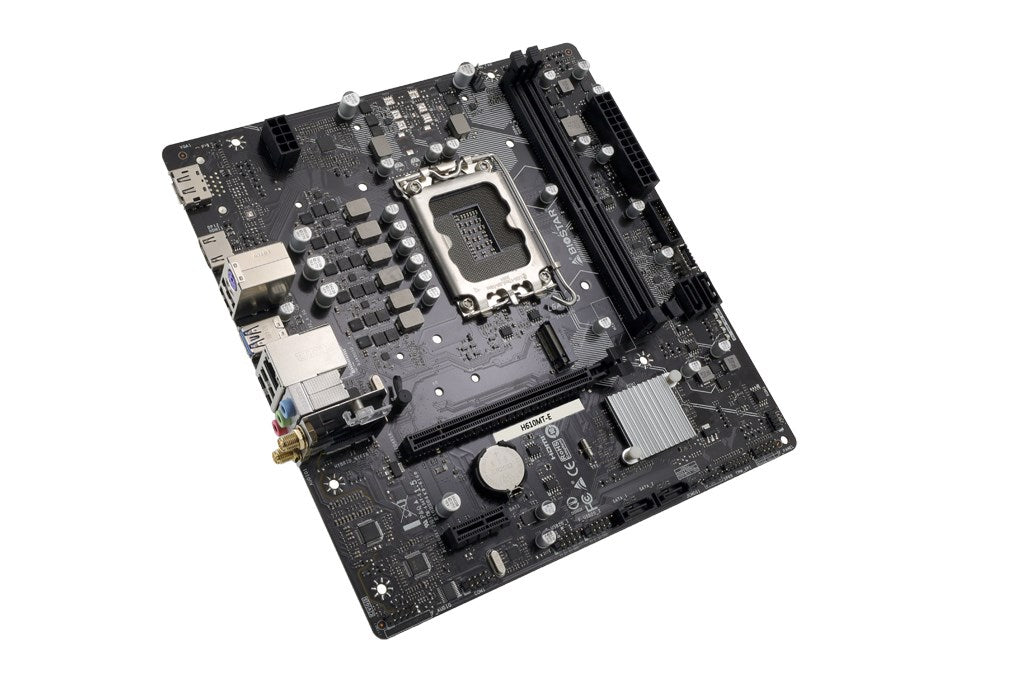

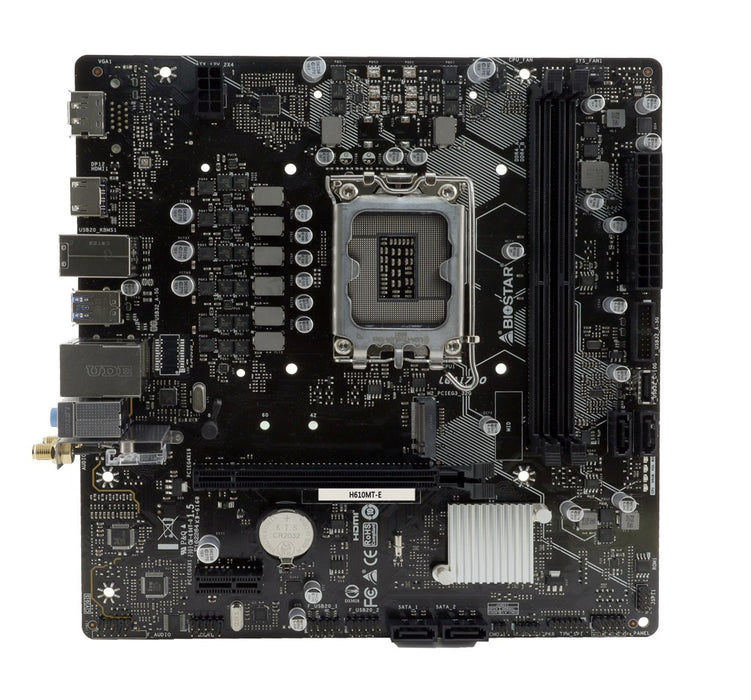

Biostar H610MT-E motherboard Intel H610 LGA 1700 micro ATX

by Biostar
SKU DGT0164295

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Compatible processor series Intel Core i9 14th Gen, Intel Core i5 12th Gen, Intel Core i9 13th Gen, Intel Core i3 12th Gen, Intel Core i7 13th Gen, Intel® Celeron®, Intel Core i7 12th Gen, Intel® Pentium®, Intel Core i3 13th Gen, Intel Core i5 13th Gen, Intel Core i9 12th Gen
Processor socket LGA 1700
Processor manufacturer Intel

Graphics

Support for parallel processing technologies Not supported

Features

Motherboard form factor micro ATX
Motherboard chipset family Intel
Audio chip Realtek ALC897
Audio output channels 7.1 channels
Supported Windows operating systems Windows 11 x64, Windows 10 x64
Motherboard chipset Intel H610

Memory

Supported memory speeds 1866, 2400, 3200, 2666, 2133, 2933
Number of memory slots 2
Memory channels Dual-channel
Maximum internal memory 64 GB
Memory slot type DIMM
Supported memory types DDR4-SDRAM
ECC compatibility Non-ECC

Weight and dimensions

Depth 228 mm
Width 216 mm

Network

Ethernet LAN Yes
Ethernet interface type Gigabit Ethernet
LAN controller Realtek RTL8111H
Wi-Fi No

Internal I/O

CPU fan connector Yes
TPM connector Yes
EPS power connector (8-pin) Yes
ATX power connector (24-pin) Yes
USB 2.0 connectors 2
Number of SATA III connectors 4
Number of COM connectors 1
Front panel audio connector Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1

BIOS

BIOS type UEFI AMI

Package contents

Included cables SATA
Included drivers Yes

Storage controllers

Supported storage interfaces M.2, SATA III

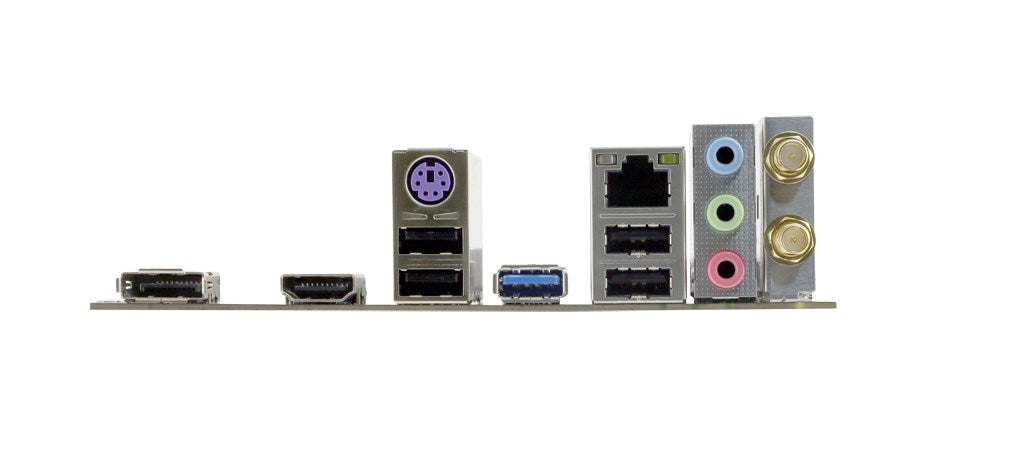

Rear panel ports

Number of DisplayPort ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 1
Number of HDMI ports 1
Ethernet LAN ports (RJ-45) 1
Number of PS/2 ports 1
Microphone input Yes
Number of USB 2.0 ports 4

Expansion slots

PCI Express x1 (Gen 3.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
