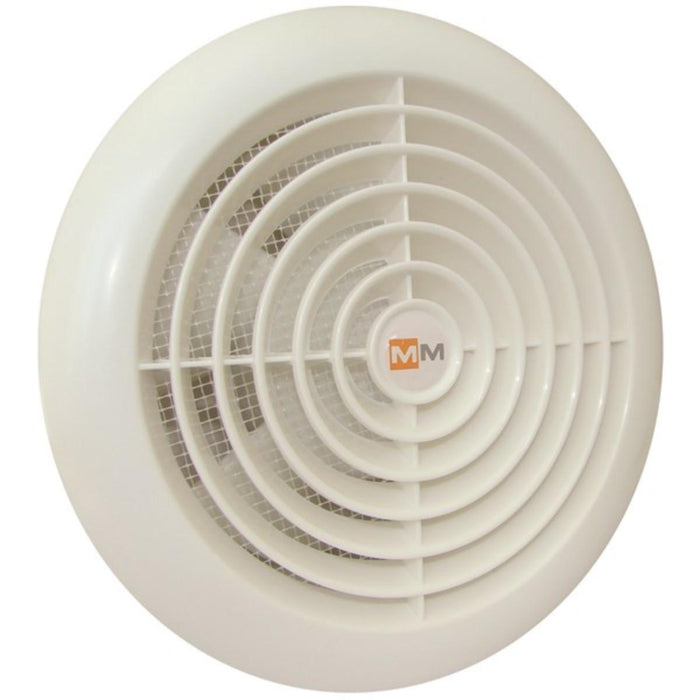

BATHROOM FAN 120MM WITH VALVE

MM series - bathroom fans for 100mm, 120mm and 150mm with high flow rate and elegant design, whose production technology ensures up to 30,000 hours of reliable and economical operation. The series is extremely popular and for 9 years has been a quality standard among users of mid-range fans. This series also includes fans with sensors and timers, two-speed fans; switches, motion sensors and timers.

They are intended for continuous or intermittent ventilation of small and medium-sized domestic, sanitary and commercial premises. They are mounted on walls, ceilings, suspended ceilings, internal walls.

All models of extractors from the MM series have built-in silent electric motors with rolling, double-encapsulated bearings, which guarantee 30,000 hours of trouble-free operation of the device when installed in a horizontal or vertical position. The housing, impeller and shutter are made of high-quality plastic.
The electric motor housing is made of aluminum alloy or heat-resistant material, ensuring good cooling and increased fire safety.

Characteristics:

• Name: Domestic fan
• Type: with internal rotor
• Color: White
• Safety shutter: YES /automatic shutter preventing the entry of cold air or insects when the fan is not working/
• Front panel dimensions: Ф165x81 mm
• Opening: ф120
• Installation: for wall/ceiling
• Nominal voltage: 220 VAC
• Nominal frequency: 50 Hz
• Nominal power: 18 W
• Flow rate: 150 m3/h
• Noise level: 42dB
• Nominal speed: 2650 rpm
• Number of wires: 2 (L N)
• Lifespan: min 30,000 hours
• Material of the housing, impeller and shutter: high-quality plastic
• Degree of protection: IP24
• Application: built into wall, ceiling, internal walls – for ventilation with direct air exhaust outside or through an air duct
• Warranty: 2 years
