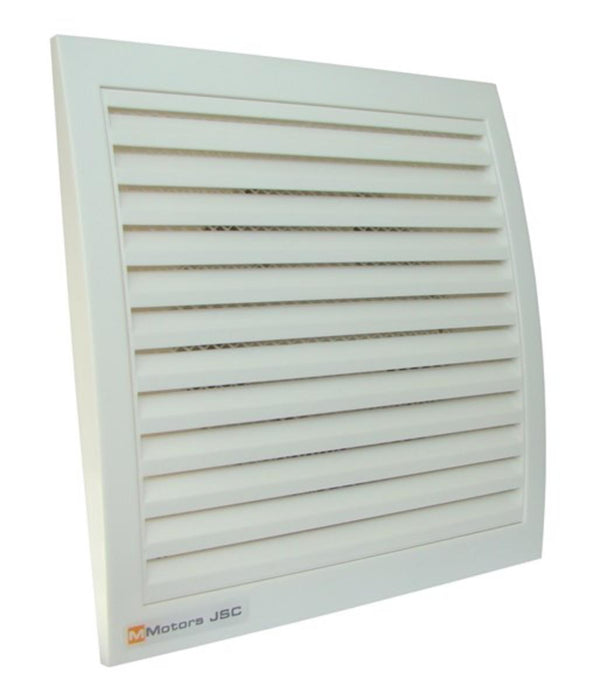

BATHROOM FAN 120MM SQUARE WITH VALVE

MM Series - bathroom fans of f100mm, 120mm and 150mm with high flow rate and elegant design, whose manufacturing technology ensures up to 30,000 hours of reliable and economical operation. The series is extremely popular and for 9 years has been a quality standard among users of mid-range fans. This series also includes fans with sensors and timers, two-speed fans; switches, motion sensors and timers.

They are intended for continuous or intermittent ventilation of small and medium domestic, sanitary and commercial premises. They are mounted on a wall, ceiling, suspended ceiling, internal walls.

In all models of extractors from the MM series, silent electric motors with rolling, double-capped bearings (NSK Japan) are built in, which guarantee 30,000 hours of trouble-free operation of the device when installed in a horizontal or vertical position. The casing, impeller and flap are made of high-quality plastic.
The motor casing is made of aluminum alloy or heat-resistant material, guaranteeing good cooling and increased fire safety.

Characteristics:

• Name: Domestic fan
• Type: with internal rotor
• Color: White
• Safety flap: YES /automatic flap preventing the entry of cold air or insects when the fan is not working/
• Front panel dimensions: Ф189x73
• Opening: f120
• Installation: for wall/ceiling
• Rated voltage: 220 VAC
• Rated frequency: 50 Hz
• Rated power: 18 W
• Flow rate: 150 m3/h
• Noise level: 42dB
• Rated speed: 2650 rpm
• Number of conductors: 2 (L N)
• Lifespan: min 30,000 hours
• Material of casing, impeller and flap: high-quality plastic
• Degree of protection: IP24
• Application: built into wall, ceiling, internal walls – for ventilation with direct exhaust of air outside or via an air duct
• Warranty: 2 years
