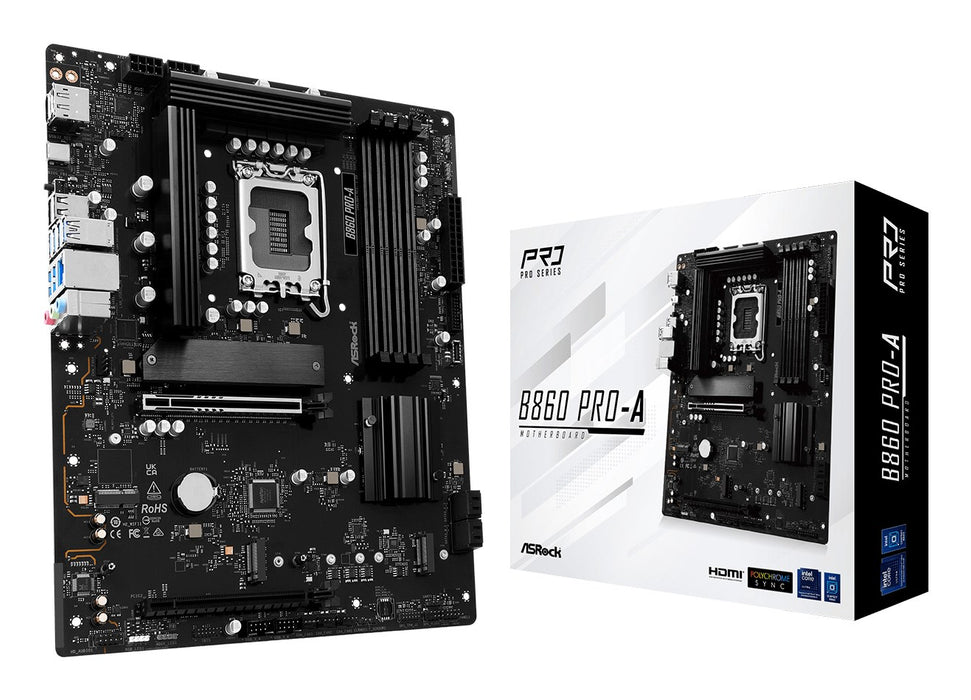

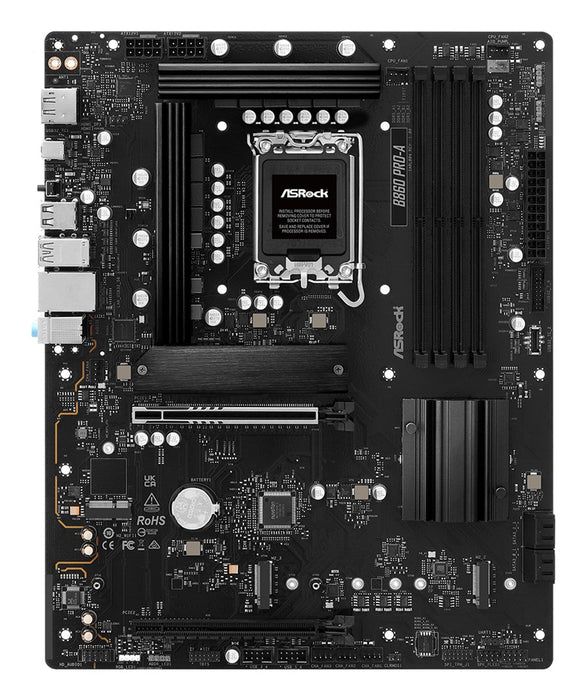

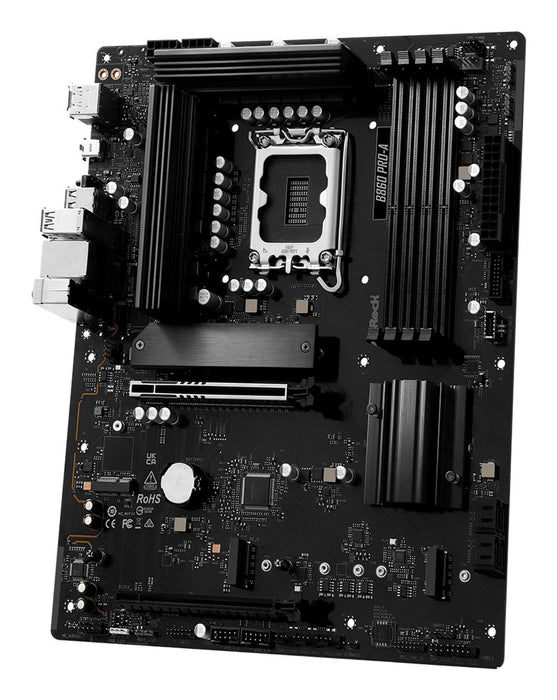

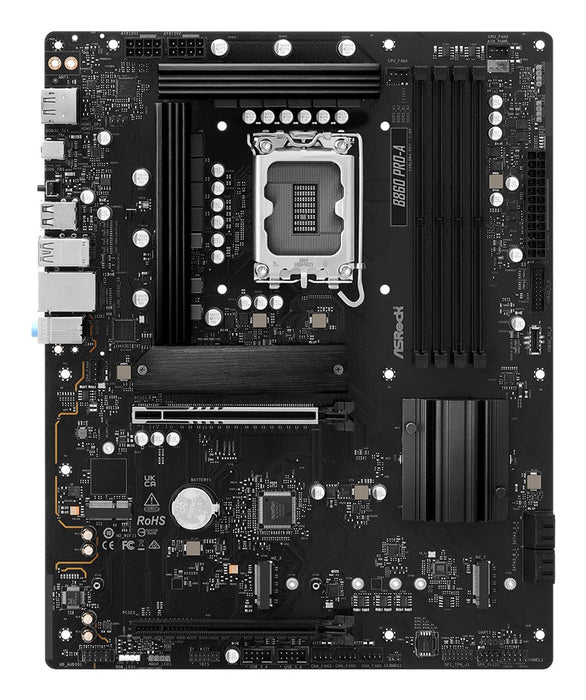

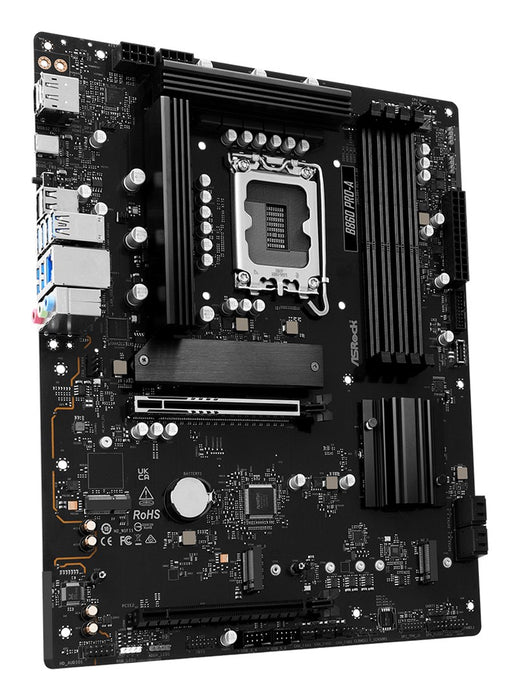

Asrock B860 Pro-A Intel B860 LGA 1851 (Socket V1) ATX

Original price €173,90 - Original price €173,90
Original price
€173,90
€173,90 - €173,90
Current price €173,90
SKU DGT0167893
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor manufacturer Intel
Processor socket LGA 1851 (Socket V1)

Graphics

Graphics card series Intel
Integrated graphics card Yes
Video card Intel® UHD Graphics

Features

Motherboard form factor ATX
Motherboard chipset Intel B860
Motherboard chipset family Intel
Audio output channels 7.1 channels
Supported Windows operating systems Windows 11 x64
Audio chip Realtek ALC897

Memory

Supported memory types DDR5-SDRAM
Memory slot type DIMM
Number of memory slots 4
Maximum internal memory 256 GB
Memory channels Dual-channel
Unbuffered memory Yes
ECC compatibility Non-ECC

Weight and dimensions

Depth 244 mm
Width 305 mm

Network

Ethernet interface type 2.5 Gigabit Ethernet
LAN controller Dragon RTL8125BG
Wi-Fi No
Ethernet LAN Yes

Internal I/O

USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
Number of chassis fan connectors 4
CPU fan connector Yes
Front panel audio connector Yes
TPM connector Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
EPS power connector (8-pin) Yes
USB 2.0 connectors 2
ATX power connector (24-pin) Yes
Number of SATA III connectors 4
RGB LED pin header Yes
Number of CPU fan connectors 2
Number of RGB LED pin headers 4
Number of EPS power connectors (8-pin) 2

BIOS

BIOS type EFI AMI

Package contents

Included cables SATA
Included screws Yes

Storage controllers

RAID levels 1, 10, 0
Number of supported drives 7
Supported drive interfaces M.2, SATA III
RAID support Yes

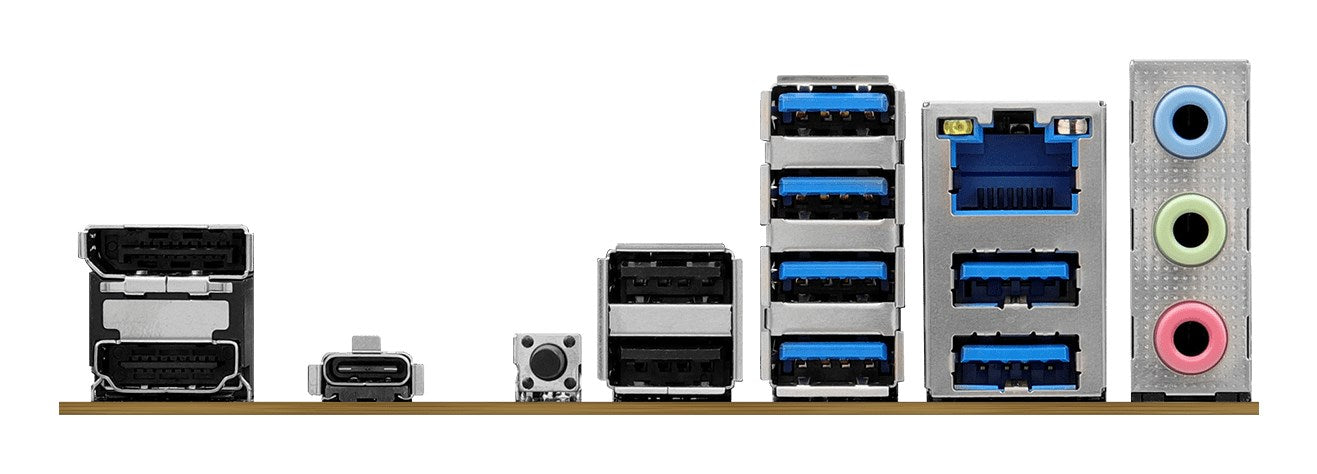

Rear panel ports

DisplayPort version 1.4
Number of USB 2.0 ports 2
Number of DisplayPort ports 1
Line input Yes
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 6
Microphone input Yes
Ethernet LAN (RJ-45) ports 1
Number of USB 3.2 Gen 2x2 Type-C ports 1

Expansion slots

Number of M.2 (M) slots 3
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1

Safety warning

Warnings When disposing of the product, follow local regulations for electronics recycling., In case of installation problems, contact a qualified service technician., Do not open or modify the motherboard to prevent damage.
