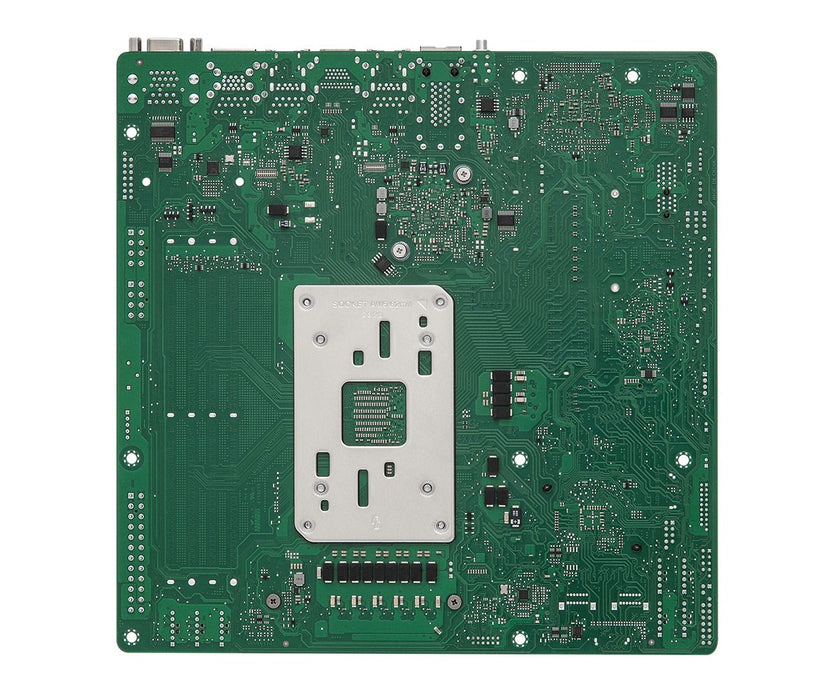

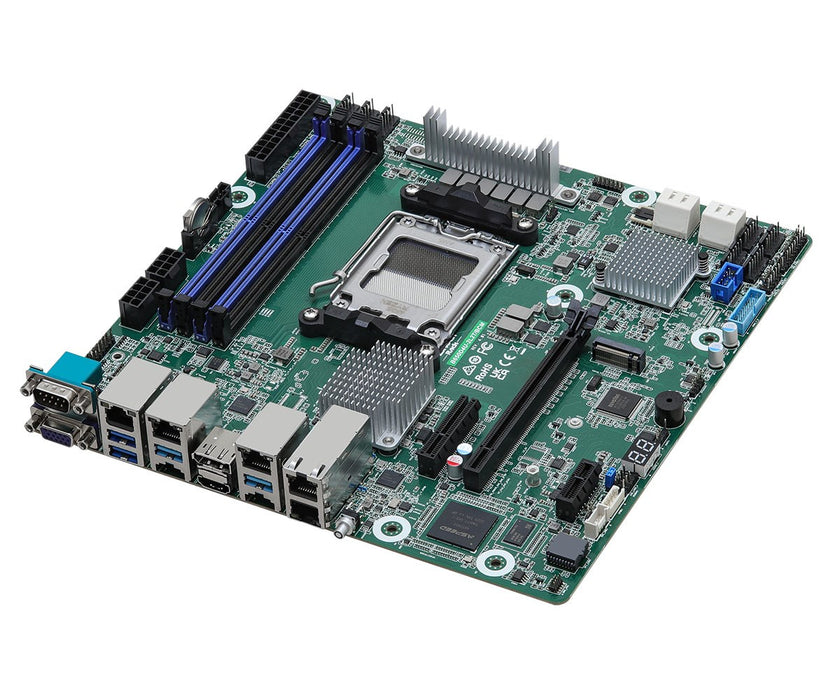

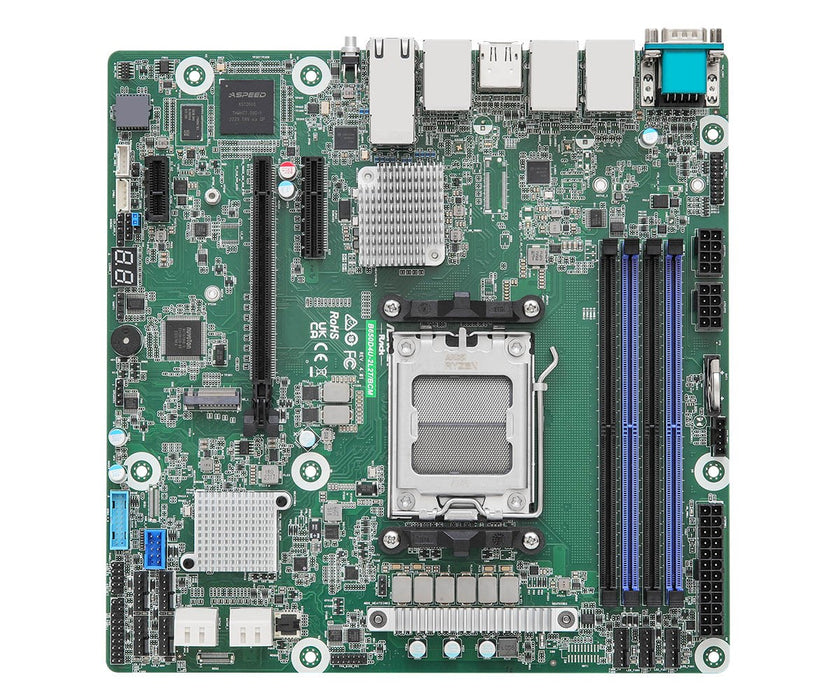

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

Asrock B650D4U-2L2T/BCM motherboard AMD B650 Express Socket AM5 micro ATX

ASROCK
SKU DGT0283420

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Maximum number of SMP processors 1
Processor socket AM5 socket
Compatible processor series AMD Ryzen™ 5, AMD Ryzen™ 3
Processor manufacturer AMD

Graphics

Integrated graphics card model Aspeed AST2600

Features

Computer health monitoring Fan, Processor, Voltage
Motherboard chipset AMD B650 Express
Motherboard form factor micro ATX
Component for Server
Motherboard chipset family AMD

Memory

Number of memory slots 4
Maximum internal memory 32 GB
Supported memory speeds 5200, 3600
Memory slot type DIMM
Memory voltage 1.1 V
Supported memory types DDR5-SDRAM
ECC compatibility ECC and Non-ECC
Supported memory frequency (max.) 5200 MHz

Operating conditions

Operating temperature (T-T) 10 - 35 °C
Operating relative humidity (H-H) 20 - 90%
Storage temperature (T-T) -40 - 70 °C

Weight and dimensions

Depth 243.8 mm
Width 243.8 mm

Network

Ethernet LAN Yes
Highest Wi-Fi standard Not available
Wi-Fi No
Ethernet interface type 10 Gigabit Ethernet, Gigabit Ethernet

Internal I/O

EPS power connector (8-pin) Yes
Number of SATA III connectors 4
Number of COM connectors 1
ATX power connector (24-pin) Yes
TPM connector Yes

BIOS

BIOS memory 256 Mbit
BIOS type UEFI AMI
CMOS clear jumper Yes
ACPI version 6.4
System Management BIOS (SMBIOS) version 3.5

Storage controllers

RAID levels 10, 0, 1
Supported drive interfaces M.2, SATA III
RAID support Yes
Number of supported drives 5

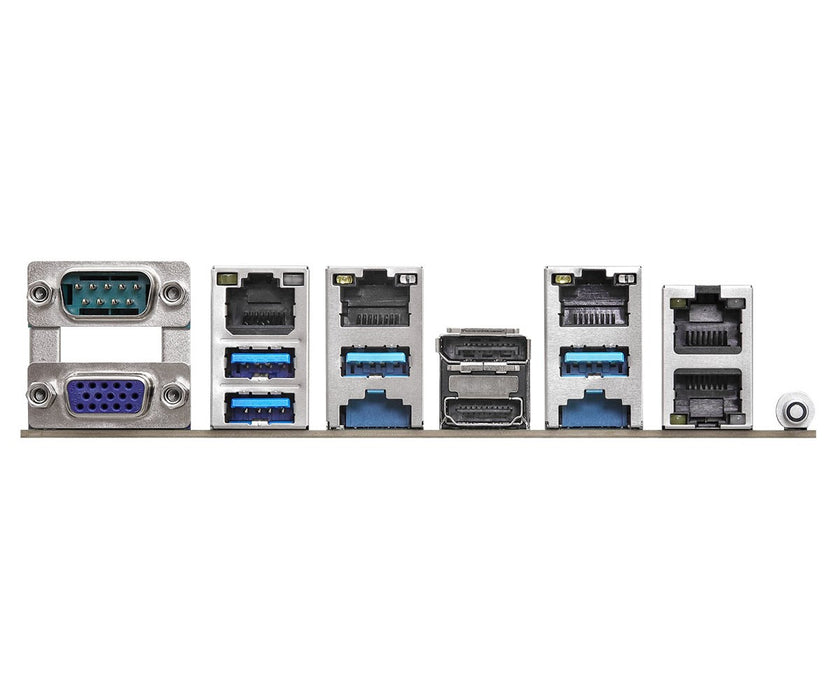

Rear panel ports

Number of VGA (D-Sub) ports 1
Ethernet LAN ports (RJ-45) 4
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Number of HDMI ports 1
Number of DisplayPort ports 1
IPMI LAN (RJ-45) port Yes
Number of serial ports 1

Expansion slots

Number of M.2 (M) slots 1
PCI Express x4 (Gen 4.x) slots 1
PCI Express x16 (Gen 5.x) slots 1

Safety warning

Warnings Use only in a dry, well-ventilated room., Do not open or disassemble the motherboard., The motherboard may contain electronic components hazardous to health – avoid direct contact.
