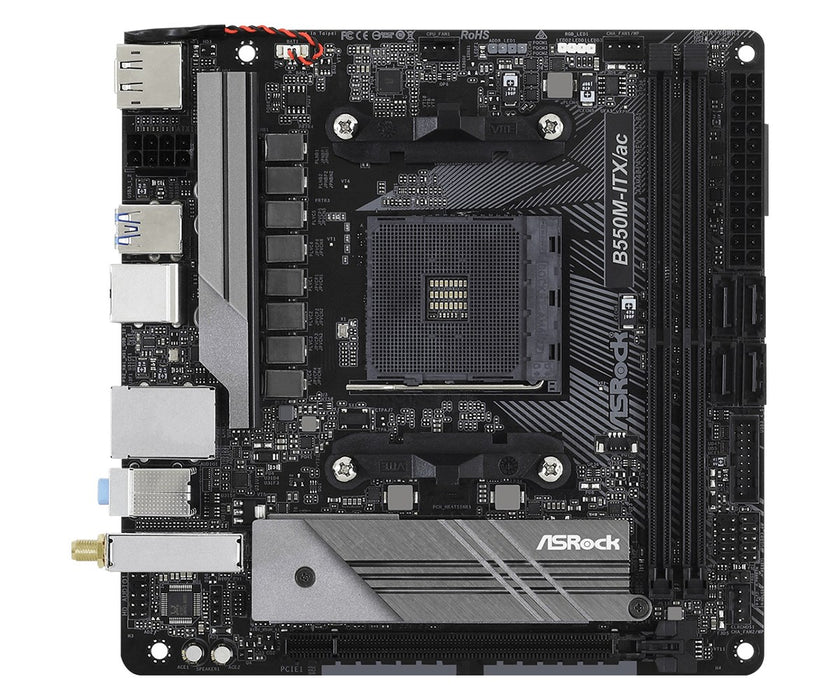

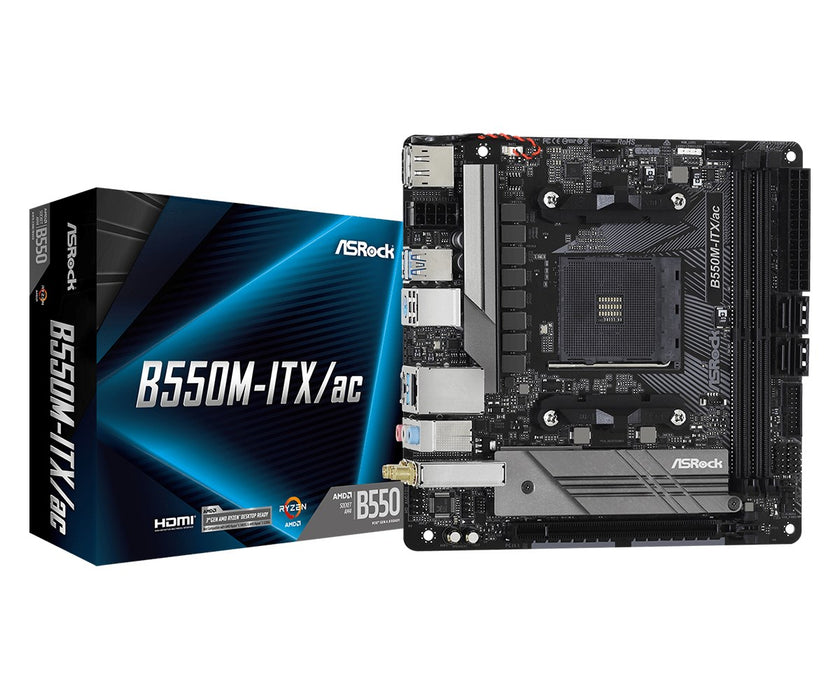

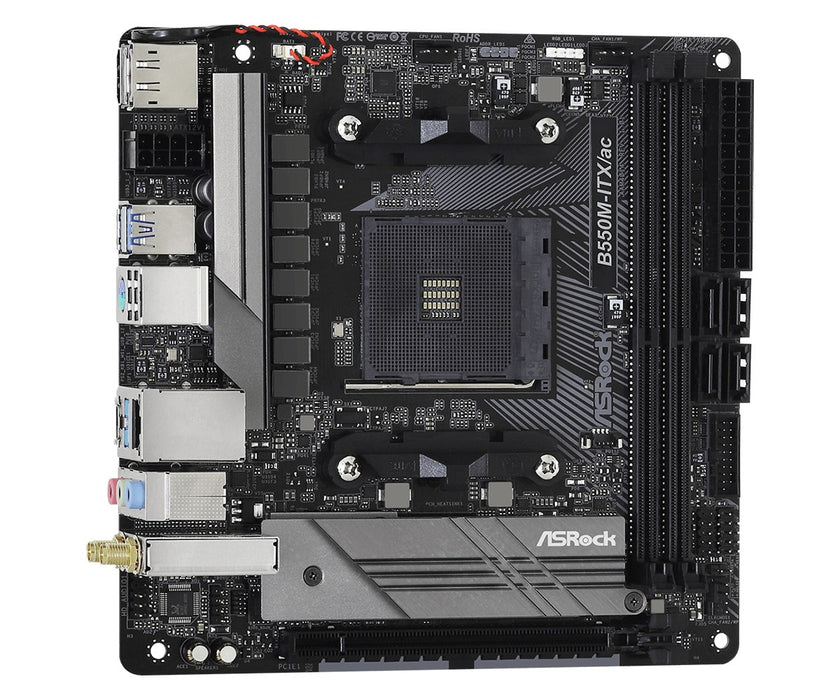

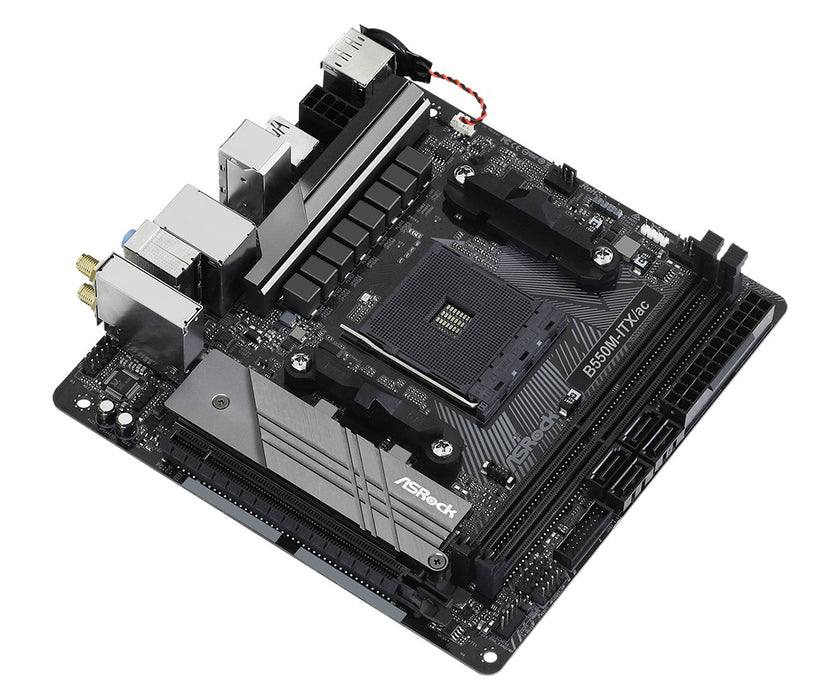

Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550

Original price €168,73 - Original price €168,73
Original price
€168,73
€168,73 - €168,73
Current price €168,73
SKU DGT0045733
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

8-phase power design - Features sturdy components and perfectly smooth power delivery to the CPU. Additionally, it offers unmatched overclocking capabilities and improved performance with the lowest temperatures, for advanced gamers. Premium 60A powerful choke - Compared with traditional chokes, the premium 60A power chokes from ASRock effectively make the saturation current up to three times better, thereby providing increased and improved Vcore voltage to the motherboard. This motherboard includes built-in RGB connectors and an addressable RGB connector, which allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis, etc. Users can also synchronize RGB LED devices in accessories certified by Polychrome RGB Sync to create their own unique lighting effects. Nobody has patience for weak WiFi signals and sluggish internet! That is why this motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module, which supports wireless networks and Bluetooth v4.2. It supports the next generation PCI Express 4.0 M.2 SSDs, and is capable of twice the speed compared with the previous 3rd generation, providing lightning-fast data transfer. M.2 Shield - Good M.2 SSD protection is important for longevity and stability. ASRock provides a complete M.2 shield solution, which allows the SSD to operate at a certain low temperature. Completed with two of the most popular connector types! Equipped with a HDMI + DisplayPort combo, so you have more connection options for your graphics card. A powerful tool that combines the speed of an SSD with the capacity of your hard drive in one fast and easily managed device. SSDs are fast but expensive and offer minimal capacity. Mechanical hard drives have large capacity at a low price but are much slower than SSDs. The AMD StoreMI technology "combines" these two types of storage into one device and automatically moves the data you access most to the SSD, so you get the best of both worlds: SSD responsiveness and mechanical hard drive capacity.

  • BIOS: 256Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 5.1 compliance wake up events; Supports jumperfree; SMBIOS 2.3 support; CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
  • M.2 slot: 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s) (with Renoir)
  • Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec); Supports Surge Protection
  • Warranty: 36 months
  • Other: Certificate: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

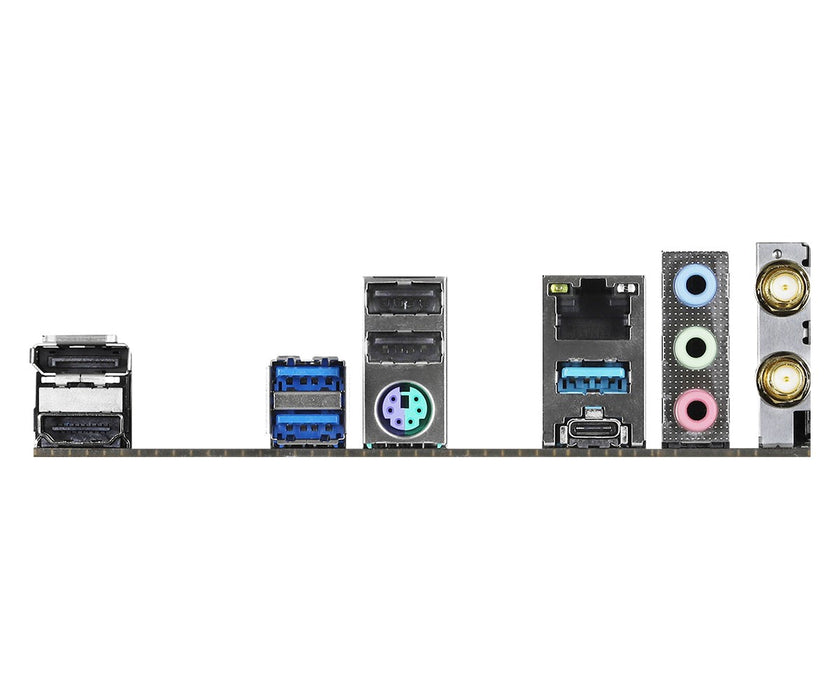

  • Interface: 2 x Antenna Ports; 1x PS/2 Mouse/Keyboard Port; 1x HDMI Port; 1x DisplayPort 1.4; 2xUSB 2.0 Ports; 3xUSB 3.2 Gen1 Type-A Ports; 1xUSB 3.2 Gen1 Type-C Port; 1xRJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in/Front Speaker/Mic
  • Connectors: 1xRGB LED Header; 1xCPU Fan Conn.(4-pin); 2xChassis/Water Pump Fan Conn.(4-pin); 1x24pin ATX and 1x8pin 12V PowerConn.; 1xFrontPanel Audio Conn.; 1xUSB 2.0 Header; 1x USB 3.2 Gen1 Header
  • Network: PCIE x1 Gigabit LAN 10/100/1000 Mb/s; Realtek RTL8111H; Supports Wake-On-LAN; Supports Lightning/ESD Protection; Supports Energy Efficient Ethernet 802.3az; Supports PXE
  • Operating system: Microsoft Windows 10 64-bit
  • Memory, slots: 2 x DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology; Max. capacity of system memory: 64GB
  • Processor: Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors; Digi Power design; 8 Power Phase design
  • Series: ITX/ac
  • Slots: 1xVertical M.2 Socket(Key E) with the bundled WiFi-802.11ac PCIe WiFi module(on the rear I/O); AMD Ryzen series CPUs (Matisse): 1xPCIE 4.0 x16 Slot (PCIE1: x16 mode), AMD Ryzen series APUs (Renoir): 1x PCIE 3.0 x16 Slot (PCIE1: x16 mode)
  • Software: ASRock Motherboard Utility (A-Tuning); ASRock Polychrome SYNC; ASRock XFast LAN
  • Special features: ASRock Super Alloy, Intel 802.11ac WiFi, ASRock Full Coverage M.2 Heatsink, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
  • Form factor: Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; Solid Capacitor design
  • Chipset: AMD B550
