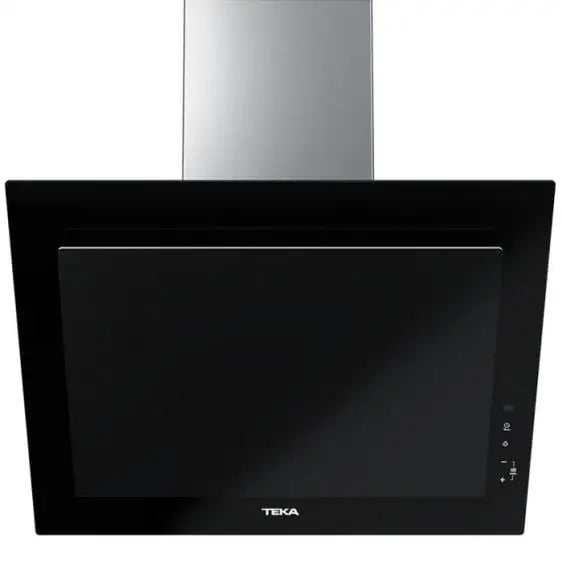

Absorber TEKA DVT 68660 black

Technical specifications:

• Wall-mounted extractor hood with panoramic design
• Perimeter absorption system + additional filtration area
• Fully touch control with white display
• Timer for programming working time
• FreshAir function for air refreshment
• Dirty filter indicator
• Power levels: 3 + 1 intensive
• LED lighting with large coverage area
• Economical and highly efficient EcoPower engine with twin turbine
• The engine (with twin turbine) is encapsulated for optimal protection against grease contamination
• Piston system for smooth closing of the front panel
• Internal, metal filters
• Removable grease collector
• Maximum capacity: 698 m³/h***
• Noise level (LwA) at minimum level (1st): 61 dB***
• Height-adjustable chimney
• Outlet ø 150 mm
• Reducer ø 150 / ø 120 mm
• Non-return valve
• Possibility of using a special activated carbon filter (at the engine outlet) with and without the chimney
• Possibility of using a standard activated carbon filter
• Possibility of using a regenerative filter
• Energy class: A+
• ***According to Delegated Regulation (EU) 65/2014

External dimensions

• Height (mm): 380
• Width (mm): 600
• Depth (mm): 412
• Weight (kg): 14.5

Features

• Hood type: Vertical
• Design type: Decorative
• Outlet (Ø mm): 150
• Removable grease collector: yes
• Dual absorption system: yes
• Interior lighting (LED, halogen, incandescent lamp): LED
• Interior lighting (W): 4
• Plug: Schuko plug
• Power cord length (cm): 100
• Power supply (V): 220-240
• Frequency (Hz): 50/60
• Maximum power (W): 286
• Number of engines: 1
• Motor power (W): 280

Delegated Regulation (EU) 65 and 66/2014

• Annual electricity consumption (AEChood) kWh/a: 38.7
• Energy class: A+
• Gasdynamic efficiency (FDEhood): 35.1
• Gas dynamic efficiency class: A
• Lighting efficiency (Lehood) lux/Watt: 69.8
• Lighting system efficiency class: A
• Grease filtration efficiency class: C
• Minimum flow rate (Qmin) m3/h: 307
• Maximum flow rate (Qmax) m3/h: 584
• Flow rate at selected intensive level (Qboost) m3/h: 698
• Noise level (LwA) at minimum level dB: 61
• Noise level (LwA) at maximum level dB: 72
• Noise level (LwA) at intensive level dB: 74
• Electrical power in off mode (Po) W: 0
• Standby power (Ps) W: 0.74
• Energy Efficiency Index (EEI): 41
• Time gain factor (f): 0.7
• Input electrical power at the point of greatest efficiency (Wbep) W: 140
• Nominal power of the lighting system (WL) W: 4.2
• Average illumination from the lighting system on the cooking area (Emiddle) Lux: 419

Accessories

• Non-return valve: yes
• Reducer Ø 150 / 120 mm: yes
• Simple recirculation kit (with chimney): 113290017
• Regenerative recirculation kit (with chimney): 113290011
• Simple recirculation kit (without chimney): 113290016
• Regenerative recirculation kit (without chimney): 113290012

Distinctive features

• Filter type: aluminum filters
• Opening system: Piston
• Control panel: touch control with white display
• Timer for programming working time: yes
• Dirty filter indication: yes
• Number of power levels: 3 + 1
• Fresh air function: yes

Warranty: 60 months
