Motherboard GIGABYTE Z890 EAGLE WIFI 7, LGA 1851

Motherboard GIGABYTE Z890 EAGLE WIFI 7, LGA 1851

GIGABYTE
SKU DGT0144644

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Warranty period 3 year(s)

Processor

Processor socket LGA 1851 (Socket V1)
Processor manufacturer Intel
Maximum internal memory supported by the processor 256 GB
Supported processor sockets LGA 1851
Compatible processor series Intel Core Ultra (Series 2)

Graphics

DirectX version 12.0

Features

Motherboard form factor ATX
Computer status monitoring Fan, Temperature, Voltage
Product colour Black
Audio output channels 7.1 channels
Motherboard chipset Intel Z890
Audio chip Realtek ALC1220
Supported Windows operating systems Windows 11 x64
Motherboard chipset family Intel

Memory

Supported memory types DDR5-SDRAM
Memory slot type DIMM
Supported memory capacities 48GB, 2GB, 4GB, 64GB, 12GB, 32GB, 8GB, 16GB, 24GB, 1GB, 40GB
Maximum internal memory 256 GB
ECC compatibility Non-ECC
Memory channels Dual-channel
Supported memory frequency (max.) 8800 MHz
Number of memory slots 4
Supported memory speeds 6800, 8600 MHz, 7400, 8400, 8266, 7000, 6200, 6000, 6600, 8000, 5800, 7950, 7900, 6400, 5600, 7200, 7600, 7800

Weight and dimensions

Width 305 mm
Height 35 mm
Depth 244 mm

Network

Wi-Fi standards Wi-Fi 7 (802.11be)
Wi-Fi Yes
WLAN controller model MediaTek MT7925
Bluetooth version 5.4
Ethernet interface type 2.5 Gigabit Ethernet
Ethernet LAN Yes
Highest Wi-Fi standard Wi-Fi 7 (802.11be)
Bluetooth Yes

Internal I/O

Number of SATA III connectors 4
USB 2.0 connectors 2
Total number of SATA connectors 4
TPM connector Yes
EPS power connector (8-pin) Yes
RGB LED pin header Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
ATX power connector (24-pin) Yes
12V power connector Yes

BIOS

BIOS type UEFI AMI
Desktop Management Interface (DMI) version 2.7
Clear CMOS button Yes
CMOS clear jumper Yes

Packaging data

Packaging width 335 mm
Packaging depth 270 mm
Packaging height 80 mm
Packaging weight 2.02 kg

Package contents

Batteries included Yes

Storage controllers

RAID support Yes
Supported drive interfaces M.2, SATA III
RAID levels 10, 1, 0, 5
Supported drive types HDD and SSD
Number of supported drives 4
Number of supported hard drives 8

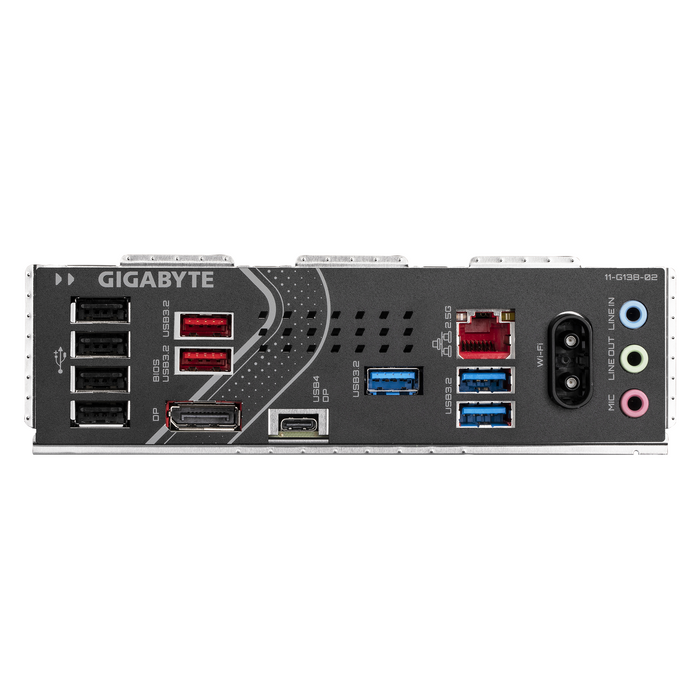

Rear panel ports

Number of DisplayPort ports 2
Ethernet LAN ports (RJ-45) 1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 2
Number of Thunderbolt ports 2
Microphone input Yes
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 3
S/PDIF output port Yes
Number of HDMI ports 1
Number of USB 2.0 ports 4

Expansion slots

Number of M.2 (M) slots 4
PCI Express x16 slots 1

Battery

Number of battery cells 1
Battery technology Lithium manganese dioxide (LiMnO2)
Lithium weight in battery 0.07 g
Battery type CR2032
Battery weight 3 g

Other features

Weight 1.78 kg

Logistics data

Products in master (inner) carton 1 pc.
Country of origin China
