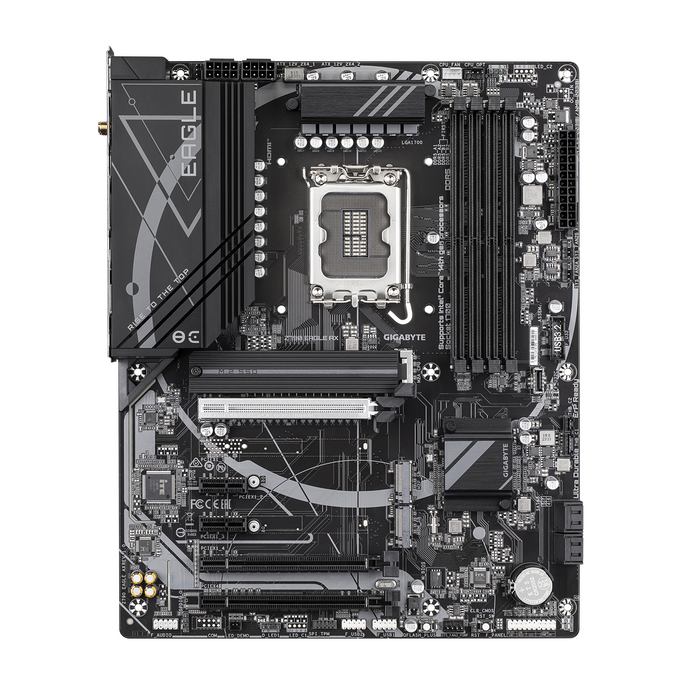

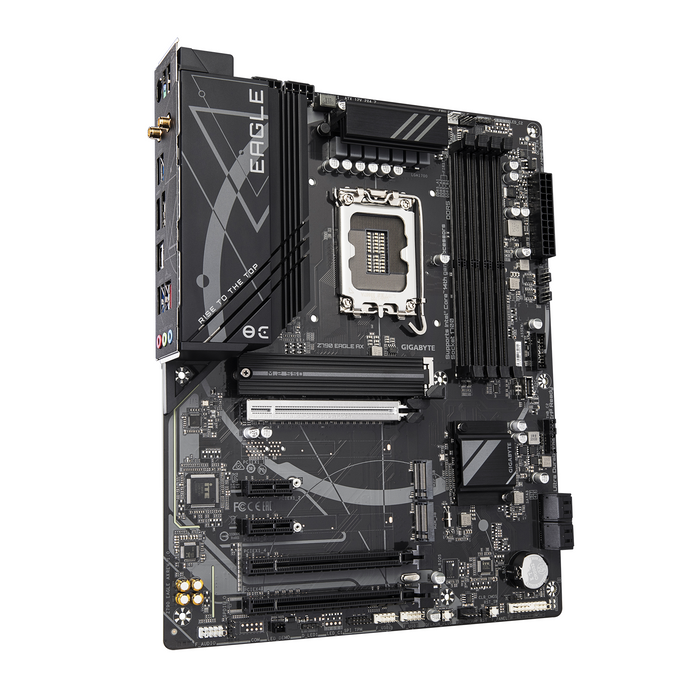

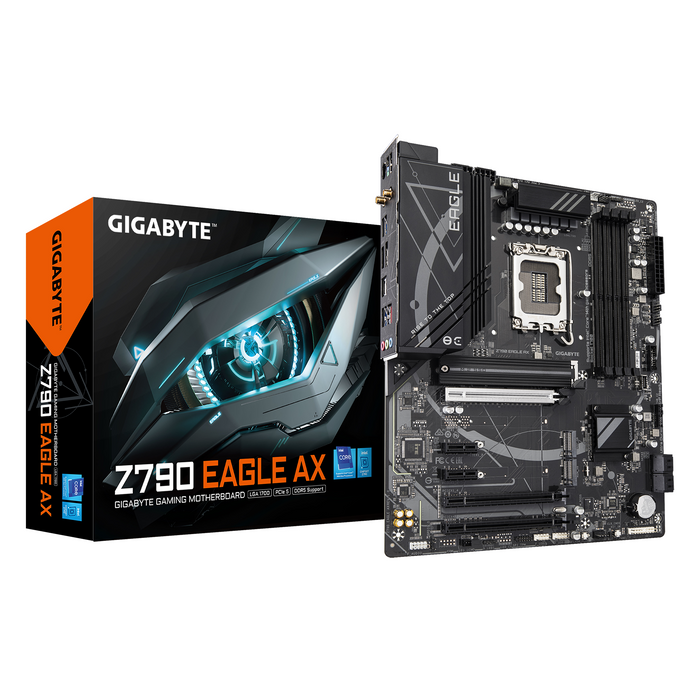

GIGABYTE Z790 EAGLE AX LGA 1700 motherboard

GIGABYTE Z790 EAGLE AX LGA 1700 motherboard

GIGABYTE
SKU DGT0242304

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Technical details

Warranty period 3 year(s)

Processor

Maximum number of SMP processors 1
Processor socket LGA 1700
Supported processor sockets LGA 1700
Maximum internal memory supported by the processor 192 GB
Compatible processor series Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold, Intel® Core™ i3
Processor manufacturer Intel

Graphics

Integrated graphics card No
Maximum resolution 4096 x 2304 pixels
HDCP Yes
Support for parallel processing technologies Not supported

Features

Supported Windows operating systems Windows 11 x64, Windows 10 x64
Motherboard form factor ATX
Computer status monitoring Temperature, Water cooling, Voltage, Fan
Motherboard chipset Intel Z790 Express
Audio output channels 7.1 channels
Power supply type ATX
Product colour Bronze
Audio chip Realtek ALC897
Motherboard chipset family Intel

Memory

Supported memory types DDR5-SDRAM
Number of memory slots 4
Memory slot type DIMM
Supported memory frequency (max.) 7600 MHz
Memory channels Dual-channel
ECC compatibility ECC and Non-ECC
Supported memory speeds 6600, 5200, 5800, 5400, 7400, 4400, 6200, 6000, 6800, 4800, 6400, 7600, 5600, 7000, 7200
Maximum internal memory 192 GB
Unbuffered memory Yes
Supported memory capacities 32GB, 2GB, 4GB, 1GB, 48GB, 8GB, 12GB, 16GB

Weight and dimensions

Depth 244 mm
Height 35 mm
Width 305 mm

Network

Ethernet LAN Yes
Highest Wi-Fi standard Wi-Fi 6E (802.11ax)
Wi-Fi standards 802.11g, Wi-Fi 6E (802.11ax), 802.11a, Wi-Fi 6 (802.11ax), Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), 802.11b
Bluetooth version 5.3
WLAN controller model Intel Wi-Fi 6E AX211
Wi-Fi Yes
Ethernet interface type 2.5 Gigabit Ethernet
Bluetooth Yes

Internal I/O

Total number of SATA connectors 4
Number of EATX power connectors 2
12V power connector Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
RGB LED pin header Yes
EPS power connector (8-pin) Yes
Front panel connector Yes
TPM connector Yes
CPU fan connector Yes
ATX power connector (24-pin) Yes
Front panel audio connector Yes
USB 2.0 connectors 2
Thunderbolt connectors 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
Number of SATA III connectors 4

BIOS

Clear CMOS jumper Yes
Clear CMOS button Yes
BIOS type UEFI AMI
Desktop Management Interface (DMI) version 2.7

Packaging data

Package depth 270 mm
Package width 335 mm
Package height 80 mm
Package weight 1.81 kg

Package contents

Antenna included Yes
Batteries included Yes
Cables included SATA

Storage controllers

RAID levels 10, 1, 5, 0
Number of supported drives 7
Number of supported hard drives 4
RAID support Yes
Supported drive types HDD and SSD
Supported drive interfaces M.2, SATA III

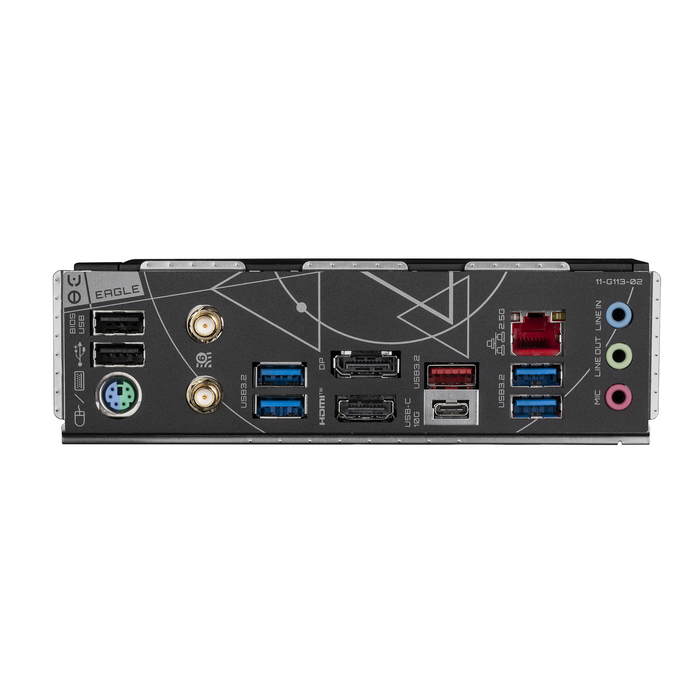

Rear panel ports

Number of USB 3.2 Gen 2x2 Type-C ports 1
HDMI version 2.1
Number of USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports 1
USB connector type USB Type-C, USB Type-A
WiFi-AP antenna connector 2
Number of PS/2 ports 1
Microphone input Yes
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Headphone outputs 1
Number of HDMI ports 1
Number of DisplayPort ports 1
DisplayPort version 1.2
S/PDIF output port Yes
Number of USB 2.0 ports 2
Ethernet LAN ports (RJ-45) 1

Expansion slots

Number of M.2 (M) slots 3
PCI Express x16 (Gen 5.x) slots 1
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
PCI Express x16 (Gen 3.x) slots 1

Battery

Battery weight 3 g
Battery type CR2032
Number of battery cells 1
Battery technology Lithium manganese dioxide (LiMnO2)
Lithium weight in battery 0.07 g

Logistics data

Products in master (inner) carton 1 pc.
Country of origin China

Safety warning

Warnings Before starting any maintenance or installation, disconnect the product from the power supply., Avoid direct contact with the electronics to prevent electrostatic damage., Do not dispose of the motherboard in ordinary waste containers; the product requires special treatment.
