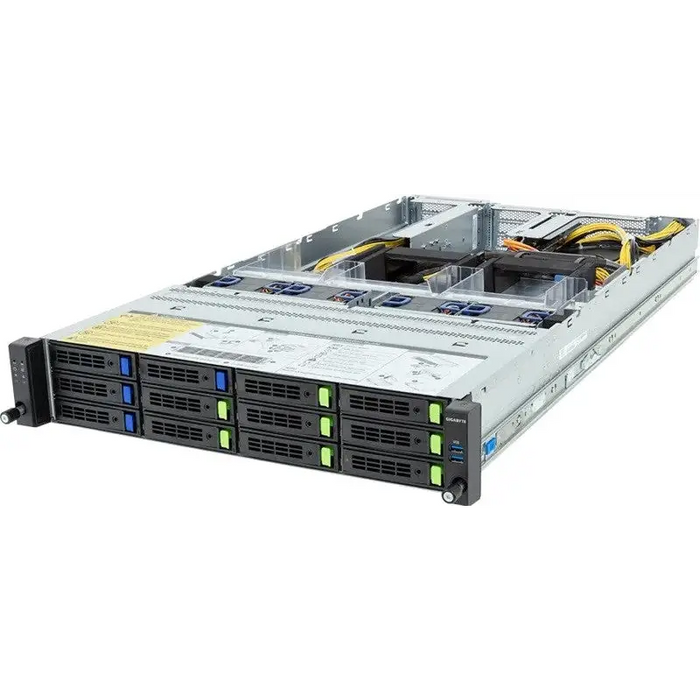

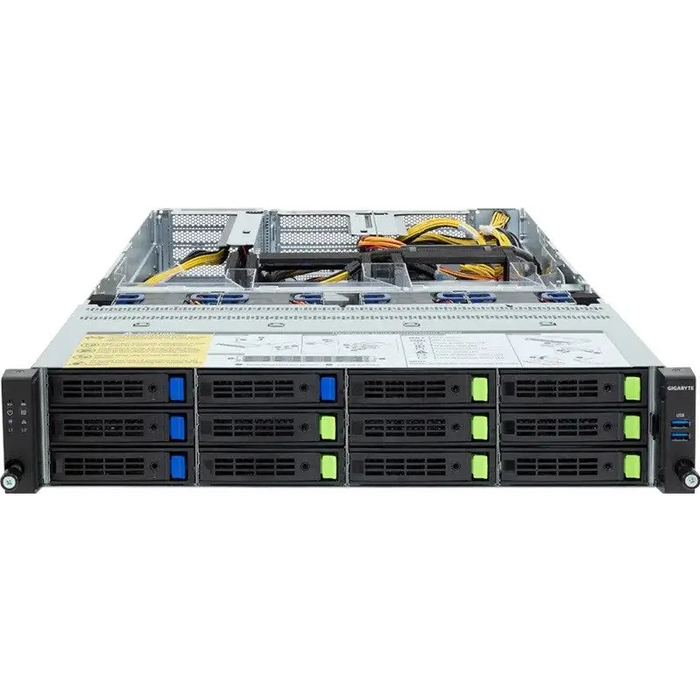

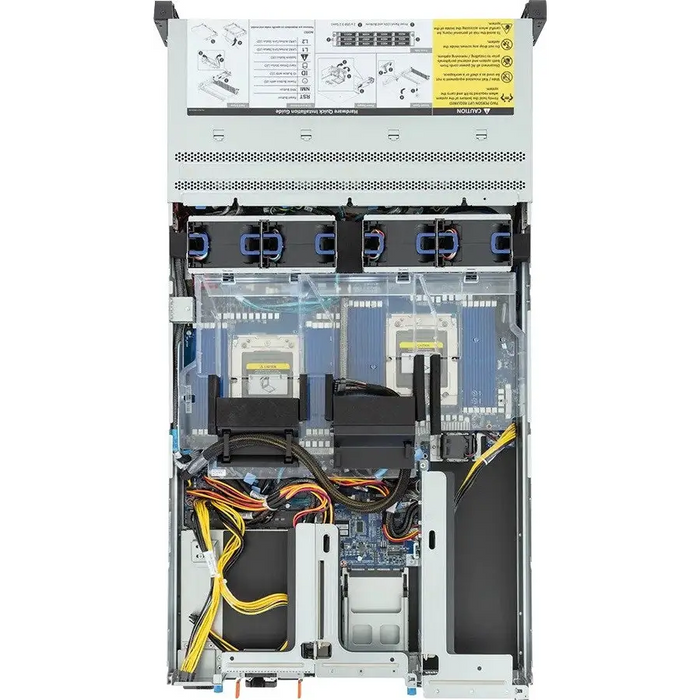

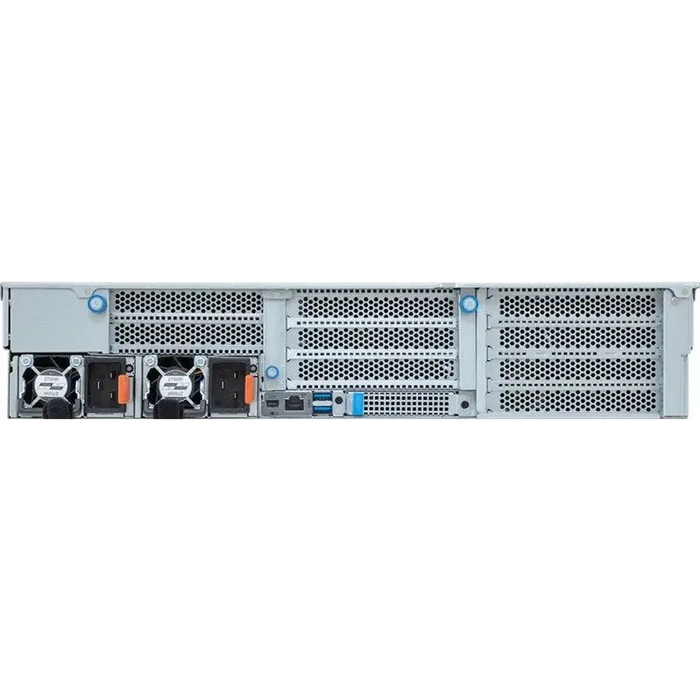

Gigabyte Rack Platform (2U) AMD R283-ZF0-AAL1

GIGABYTE
€8.001,90 - €8.001,90
€8.001,90
€8.001,90 - €8.001,90
€8.001,90
SKU DGT0276693
Ships within 8 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Processor family AMD EPYC
Motherboard chipset AMD SoC
Number of supported processors 2
Processor manufacturer AMD
Processor socket LGA 6096

Graphics

Integrated graphics card model Aspeed AST2600

Features

Trusted Platform Module (TPM) Yes
Backplane support Yes

Memory

Supported RDIMM memory frequencies 4800 MHz, 6400 MHz
Number of DIMM slots 24
Supported memory types DDR5-SDRAM
Memory channels Twelve-channel

Design

Chassis type Rack mount (2U)

Power

AC input voltage 110 - 240 V
AC input frequency 50-60 Hz
Number of main power supplies 2
80 PLUS certification 80 PLUS Titanium
Power supply 2700 W

Operating conditions

Storage temperature (T-T) -40 - 60 °C
Operating temperature (T-T) 10 - 30 °C
Operating relative humidity (H-H) 8 - 80%
Storage humidity (H-H) 20 - 95%

Weight and dimensions

Weight 31.7 kg
Width 438 mm
Depth 815 mm
Height 87.5 mm

Network

Data transfer rates over Ethernet LAN 100, 10, 1000 Mbit/s
Ethernet LAN Yes

Packaging data

Packaging weight 36 kg
Packaging width 1082 mm
Packaging depth 685 mm
Packaging height 314 mm

Expansion slots

PCI Express x16 slots 5

Storage

Number of M.2 connectors 2
Number of 2.5"/3.5" bays 12
RAID levels 1, 10, 6, 0, 5
Supported drive types HDD and SSD
Hot-swap HDD bays Yes
Supported storage device sizes 3.5", 2.5
Number of supported drives 14

Ports and interfaces

Reset button Yes
Ethernet LAN ports (RJ-45) 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
Number of Mini DisplayPort ports 1
