Description

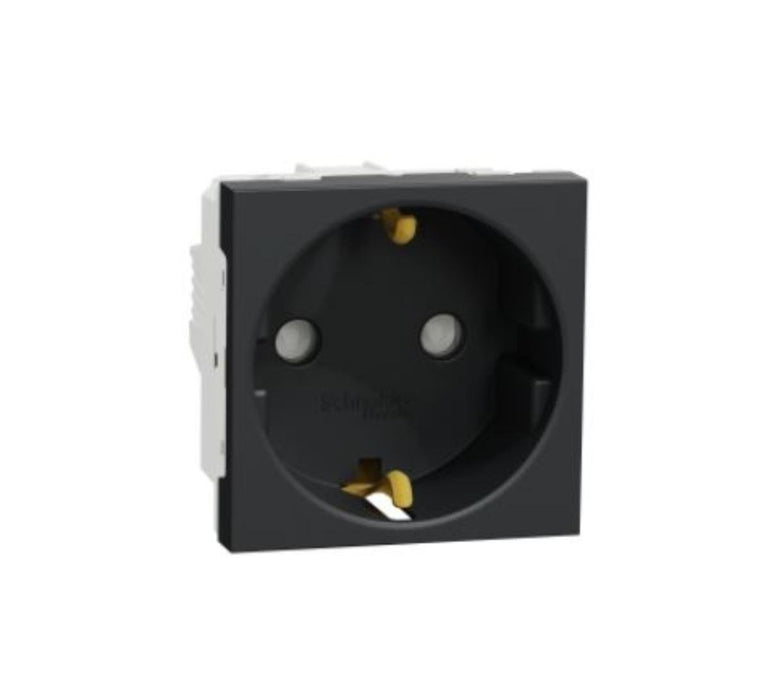

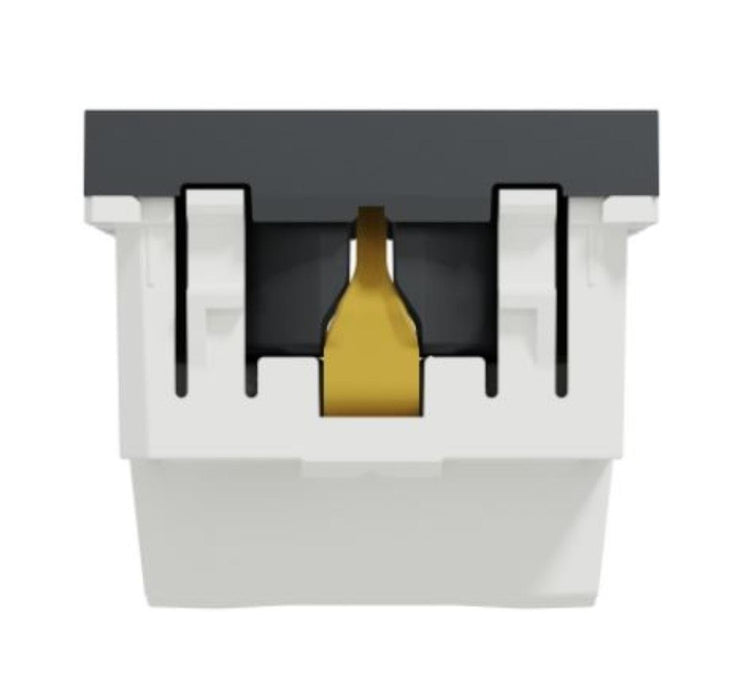

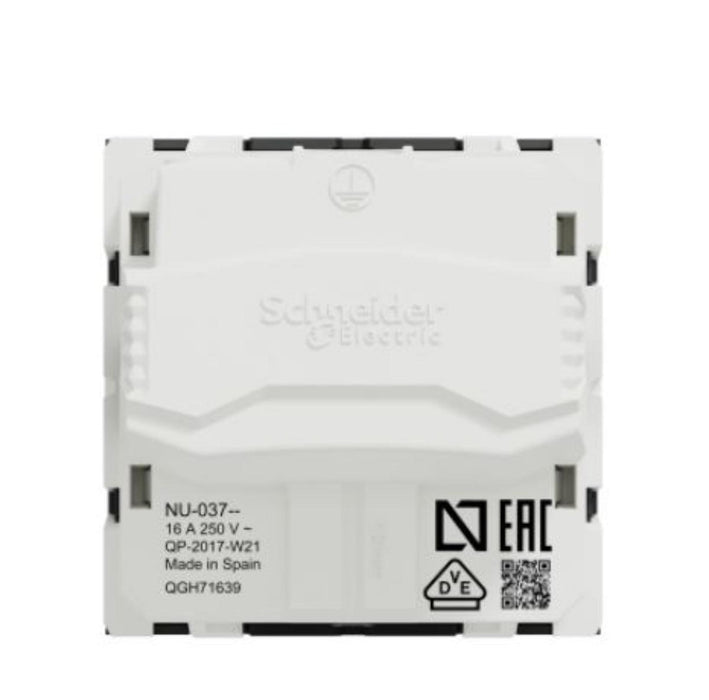

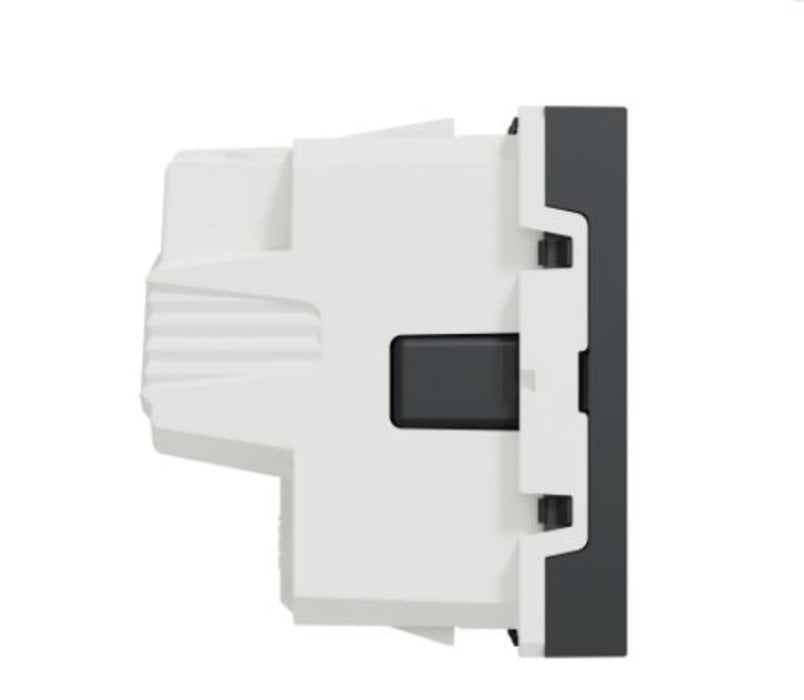

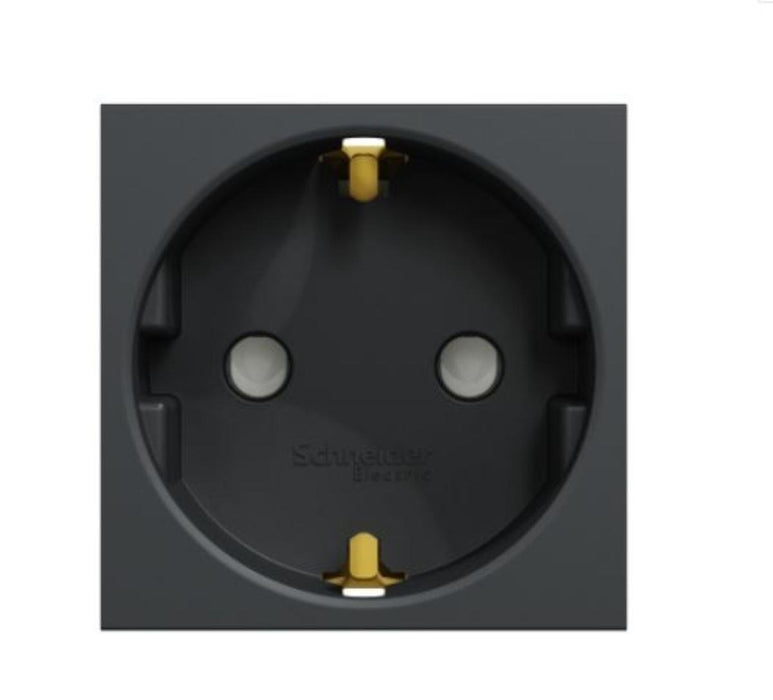

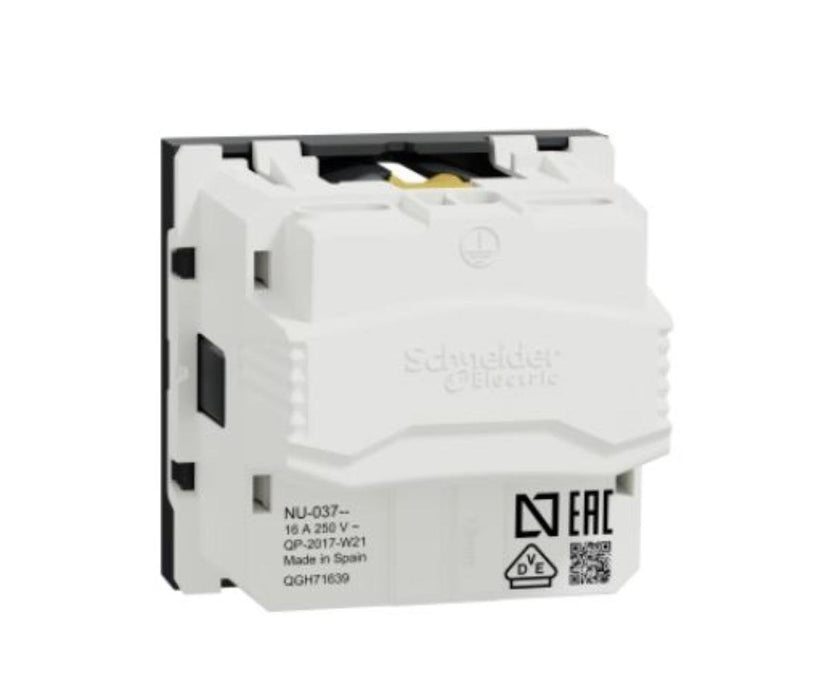

Socket outlet, New Unica mechanism, 2P+E, 16A, Schuko, powder-coated, anthracite Unica is designed with intelligent features to be flexible Add a designer frame for a complete set Schneider Electric New Unica NU303754 socket outlet is an anthracite-coloured mechanism. The pole configuration of this socket outlet is 2P + E with covers providing safety protection. This device also follows the German standard. The dielectric strength level, the voltage that the material used in this socket outlet can withstand for a given wall thickness before the dielectric breaks down, is 2000 V. Its rated current is 16A. The device is fixed by clip. It is 45 mm wide, 45 mm high and 40 mm deep, with an installation depth of 30.5 mm. Its suitable mounting box can be recessed into the wall surface in a flush-mounted type. It stands out with an elegant matt finish, which adds value to your interior design. The IP rating of this device is IP21D, which is very high. It reaches a protection level IK04, which can help protect against impact. This socket outlet has terminals for connection with screw terminals. Made of Cu.Zn33, Cu.Zn37, PC (polycarbonate) GF10 FR material, this socket outlet is quite reliable and durable. This socket outlet is certified by AENOR and EAC. This device is qualified as a green premium product, with minimal use of hazardous substances. The new Unica includes a range of new designs, colours and materials. Users benefit from a beautiful design that suits their style, and from innovative products. The new Unica is designed with intelligent features to be flexible, easy to understand and quick to install, providing solutions for all customer requirements. The Green PremiumTM label is Schneider Electric's commitment to deliver products with the best environmental performance in their class. Green Premium promises compliance with the latest regulations, transparency about environmental impacts, as well as circular products with low CO2 content. Product range: New Unica Device application: Power supply Product or component type: Socket outlet
Device presentation • Output poles configuration: 2P + E • Standard outlet: Schuko • Rated current: 16 A • [Ue] rated operational voltage: 250 V • Network type: AC • Network frequency: 50/60 Hz • Number of modules: 2 modules • Fixing mode: Clip • Colour shade: Anthracite (RAL 7021) • Connections – terminals: Screw terminals • Cable cross-section: 0…4 mm² cable(s), 2 - cable stiffness: flexible 0…4 mm² cable(s), 2 - cable stiffness: rigid • Minimum load capacity: 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 • Electrical endurance: 10000 cycles, cos phi = 0.8 • Insulation resistance: > 5 MOhm at 500 V • Dielectric strength: 2000 V • Material: PC: mechanism cover PC (polycarbonate) GF10 FR: housing CuZn37: terminals CuZn33: earth contact • Surface finish: powder-coated Standards: • IEC 60884-1 • UNE 20315-1-1 • UNE 20315-1-2 • DIN VDE 0620-1 Product certifications: • AENOR • EAC • Installation depth: 30.5 mm • Depth: 40 mm • Width: 45 mm • Height: 45 mm • Net weight: 0.033 kg Resistance to chemical agents: • Resistant to alcohol (70%) • Resistant to alcohol (96%) • Resistant to A-lactic acid • Resistant to diluted quaternary ammonium • Resistant to diluted bleach • Resistant to diluted ammonia • Resistant to soapy water • Resistant to crystal cleaning agent • Resistant to 10-volume hydrogen peroxide • Resistant to hexane Environment: • Ambient air temperature for operation: -5…35 °C • Ambient air temperature for storage: -5…50 °C • IK protection degree: IK04 • IP degree of protection: IP21D Environmental characteristic: • acetone • Bleach • UV resistant • Petrol • Oil • Alcohol • Window cleaning liquid • Liquid soap
