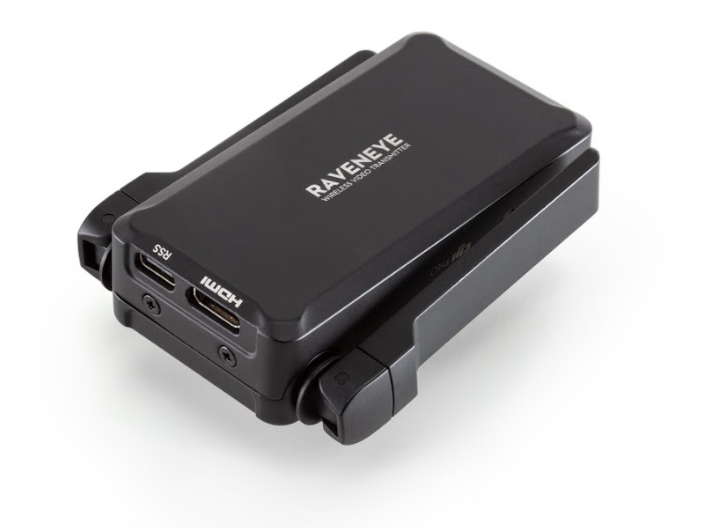

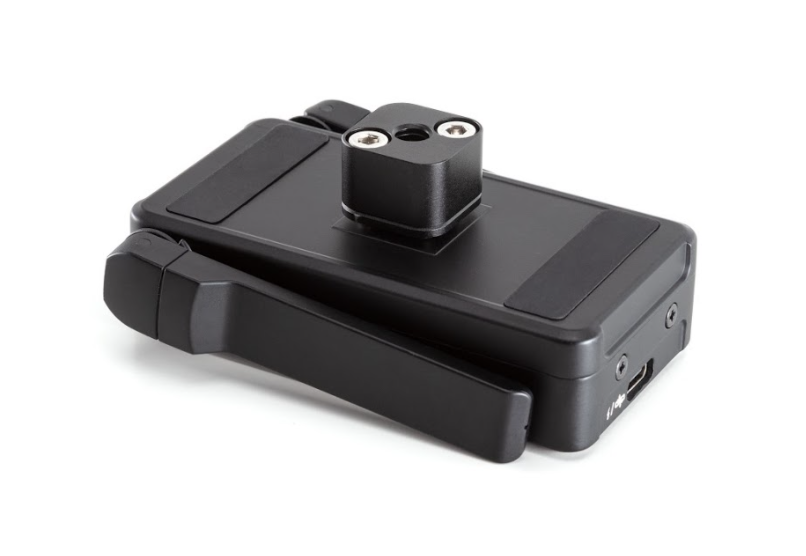

DJI Ronin RavenEye Image Transmission System

DJI Ronin RavenEye Image Transmission System

Dji
€219,90 - €219,90
€219,90
€219,90 - €219,90
€219,90
SKU DGT0083346

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

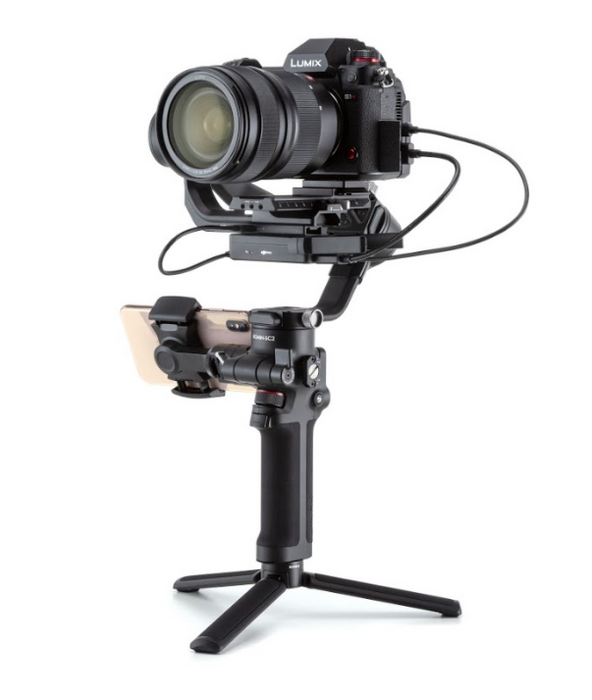

The DJI Ronin RavenEye Image Transmission System allows for a live view of the camera and enables the use of ActiveTrack 3.0 on the DJI RS 2. Images are transmitted to the gimbal display and the Ronin app. When used with the DJI RSC 2, RavenEye allows for remote gimbal control, image monitoring, and ActiveTrack 3.0. However, the gimbal's built-in display does not allow for live viewing. The system is mounted on the gimbal and connected to the camera via HDMI. Smartphones connect via Wi-Fi. Visit dji.com for a list of compatible camera models and features.
Note: Ronin S and SC do not support remote control or ActiveTrack 3.0 via RavenEye

Compatibility

DJI RS 2 (Ronin-S2)

DJI RSC 2 (Ronin-SC2)

DJI Ronin-S

DJI Ronin-SC

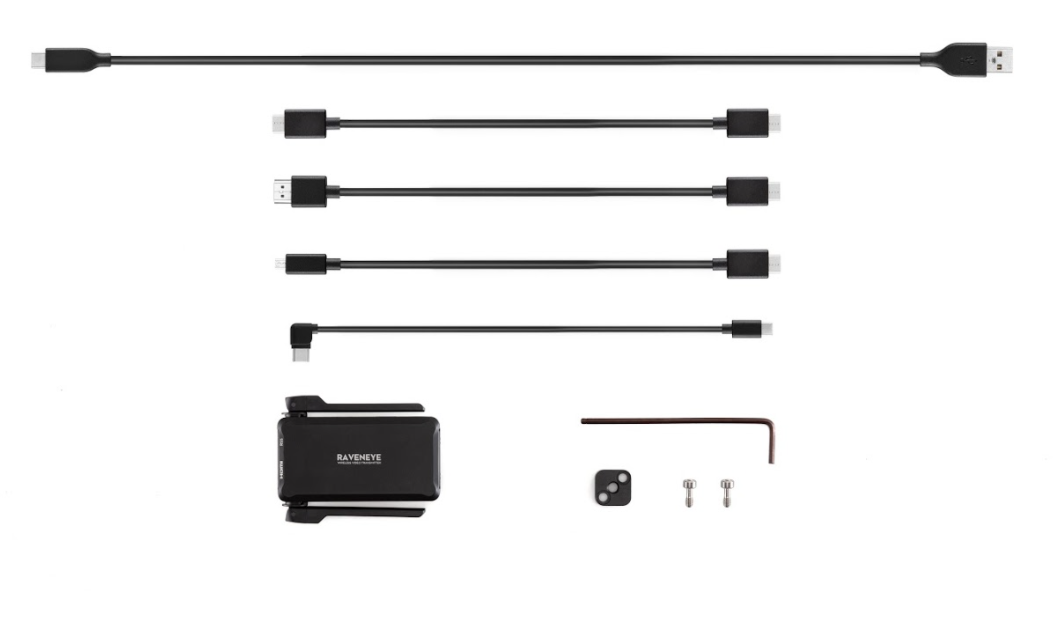

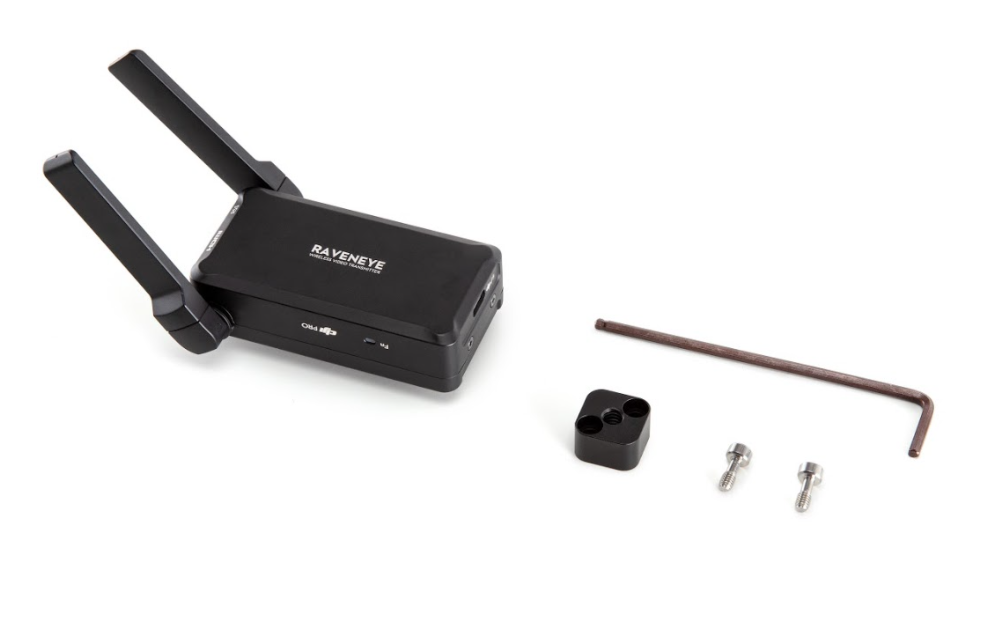

Included in the set

Image transmitter × 1
Cold Shoe Adapter for 1/4''-20 × 1
USB-C Charging Cable (40 cm) × 1
USB-C power cable (20cm) × 1
Mini-HDMI to HDMI cable (20 cm) × 1
Mini-HDMI to Mini-HDMI cable (20 cm) × 1
Mini-HDMI to Micro-HDMI Cable (20 cm) × 1
M4 × 2 screw
Allen key (3mm) × 1

Specification

Frequency: 2.400-2.4835 GHz，5.725-5.850 GHz
Libra 126 g
Power supply 82mm x 63mm x 24mm
Transmission power (EIRP):

2.400-2.4835 GHz:
＜25dBm (FCC)
＜20dBm (CE/SRRC/MIC)


5.725-5.850 GHz:
＜25dBm (FCC/SRRC)
＜14dBm(CE)
