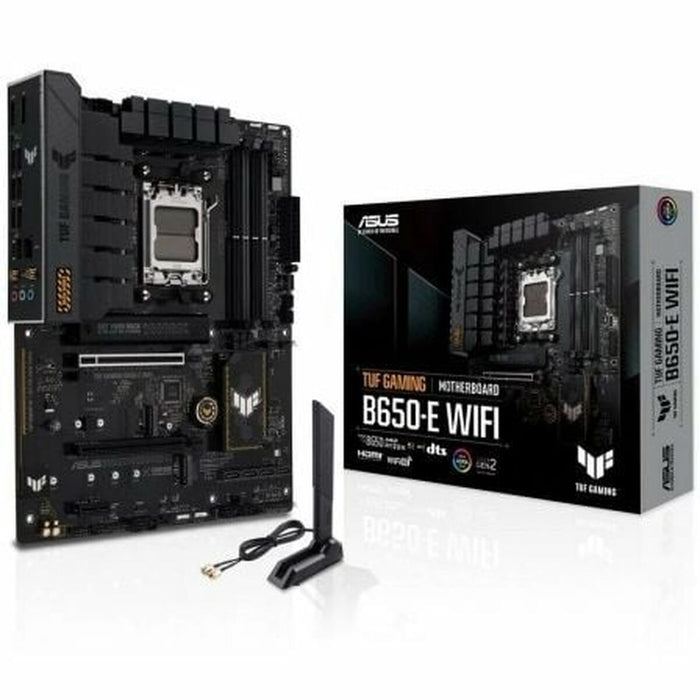

Motherboard Asus TUF GAMING B650-E AMD AM5 AMD AMD B650

The Asus 90MB1GT0-M0EAY0 motherboard is a component designed for users seeking high performance and advanced compatibility within the ATX Motherboards segment for desktop PCs. It features the AMD B650 chipset, compatible with AMD Ryzen 7000 and 8000 series processors thanks to the AM5 socket, ensuring support for the latest generation of high-performance CPUs. This motherboard supports up to 192 GB of DDR5 memory across four DIMM slots, with speeds up to 8000 MHz in overclocking and AMD EXPO profile compatibility to optimize RAM performance. For graphics expansion, it includes multiple PCIe 4.0 slots allowing installation of graphics cards and other devices with various bandwidth configurations, ensuring versatility for gaming and professional setups. For storage, it offers up to three M.2 slots supporting PCIe 5.0 and PCIe 4.0, plus four 6 Gb/s SATA ports, facilitating connection of SSDs and HDDs in advanced configurations with support for AMD RAIDXpert2 RAID technology. In connectivity, it includes an integrated Wi-Fi 6 module and a 2.5 Gb Realtek Ethernet port, providing fast and stable wireless and wired connections. Its rear panel is equipped with high-speed USB ports (including USB 3.2 Gen 2 at 10 Gbps and USB Type-C), multiple video outputs such as HDMI and DisplayPort, and a full Realtek 7.1 HD audio system with advanced surround sound features, shielding, and premium capacitors that ensure sound quality and fidelity. For cooling and internal connectivity, it has multiple headers for fans, AIO pumps, and USB ports for front panel peripherals, plus a BIOS FlashBack button for firmware updates without a CPU. The ATX form factor offers optimal component layout and compatibility with most standard cases. This motherboard supports 64-bit Windows 10 and 11 operating systems, making it a robust and modern solution to enhance gaming, productivity, or demanding multimedia setups with support for the latest processor, memory, and connectivity technologies. In short, the Asus 90MB1GT0-M0EAY0 represents a balanced and advanced platform that meets current performance and expansion demands in high-end PCs.

• Type:
  • Motherboard
  • ATX
  • UEFI
• Characteristics:
  • USB
  • Memory
• Form factor: ATX
• Colour: Black
• Connectivity:
  • Bluetooth
  • Wi-Fi
  • Wi-Fi 6 GHz
  • Bluetooth 5.3
• Interface: Gigabit Ethernet
• Memory: 256 MB
• Number of memory slots: 4
• Ports: 1
• Speakers: 7.1
• Connections:
  • USB 2.0 x 3
  • HDMI x 1
  • 2 x USB 2.0
  • Microphone
  • Ethernet LAN
  • SATA x 4
  • M.2 x 3
  • DIMM
  • DisplayPort x 1
  • USB 3.2 x 3
  • RJ45 x 1
• Compatible:
  • HDD/SSD
  • PC
• Width: 30,5 cm
• Chipset:
  • AMD
  • AMD B650
• Socket: AMD AM5
• Memory Type: DDR5
• Processor Family: AMD
