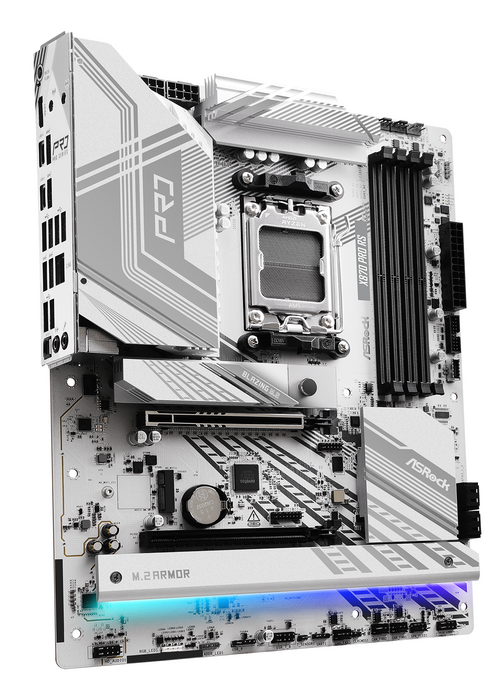

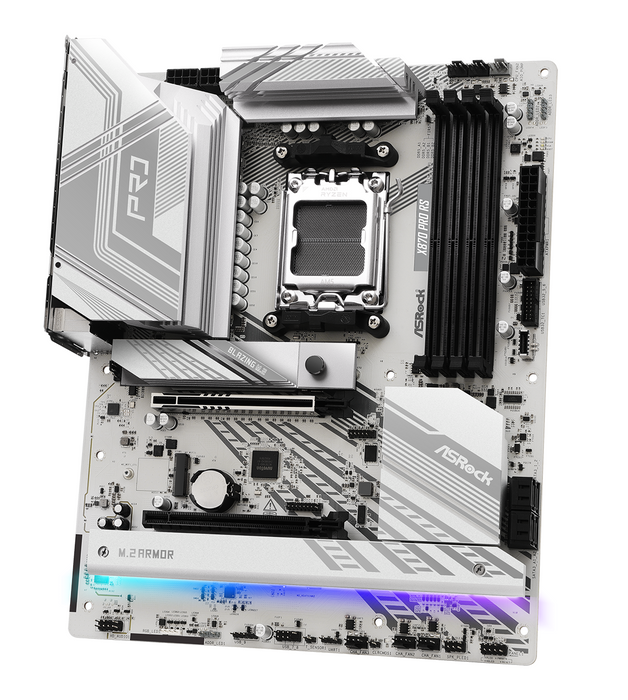

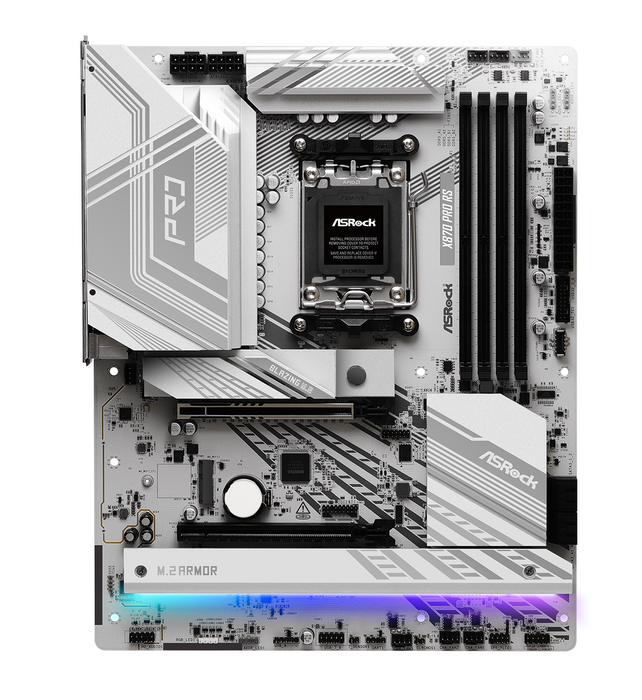

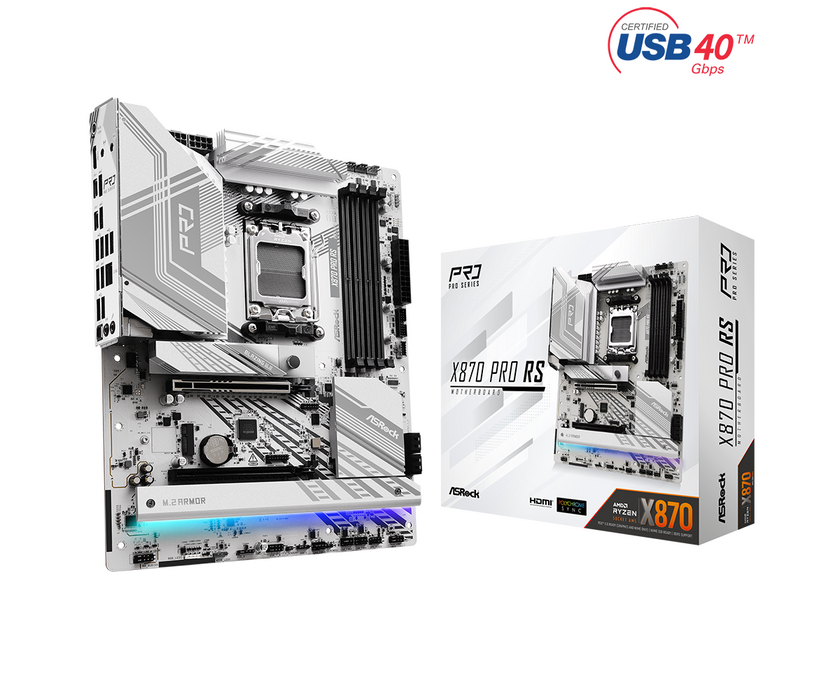

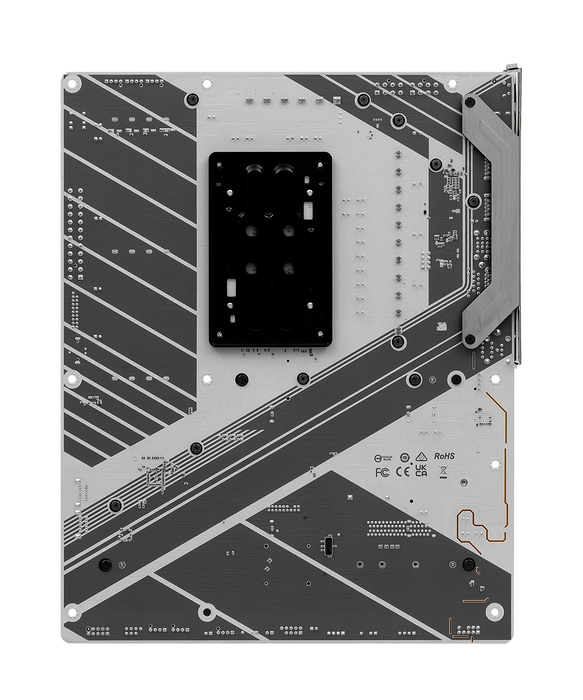

Motherboard ASROCK X870 PRO RS, Socket AM5

Motherboard ASROCK X870 PRO RS, Socket AM5

ASROCK
€281,90 - €281,90
€281,90
€281,90 - €281,90
€281,90
SKU DGT0114704
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

Technical specifications

Processor

Compatible processor series AMD Ryzen™ 8000 Series, AMD Ryzen™ 7000 Series, AMD Ryzen™ 9000 Series
Processor socket AM5 socket
Maximum number of SMP processors 1
Processor manufacturer AMD

Features

Audio chip Realtek ALC1220
Motherboard chipset family AMD
Operating system architecture 64-bit
Motherboard chipset AMD X870
Supported Windows operating systems Windows 10 x64, Windows 11 x64
Audio output channels 7.1 channels
Motherboard form factor ATX

Memory

Supported memory clock speed (max.) 8000+ MHz
Memory channels Dual-channel
Supported memory types DDR5-SDRAM
Unbuffered memory Yes
Memory slot type DIMM
Maximum internal memory 256 GB
Number of memory slots 4

Weight and dimensions

Width 305 mm
Depth 244 mm

Networking

Ethernet LAN Yes
LAN controller Dragon RTL8125BG
Bluetooth No
Wi-Fi No
Ethernet interface type 2.5 Gigabit Ethernet

Internal I/O

USB 3.2 Gen 1 (3.1 Gen 1) connectors 1
CPU fan connector Yes
RGB LED pin header Yes
Audio connector for front panel Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors 1
USB 2.0 connectors 2
Number of SATA III connectors 4
ATX power connector (24-pin) Yes

BIOS

BIOS type UEFI AMI

Storage controllers

Supported storage interfaces Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)

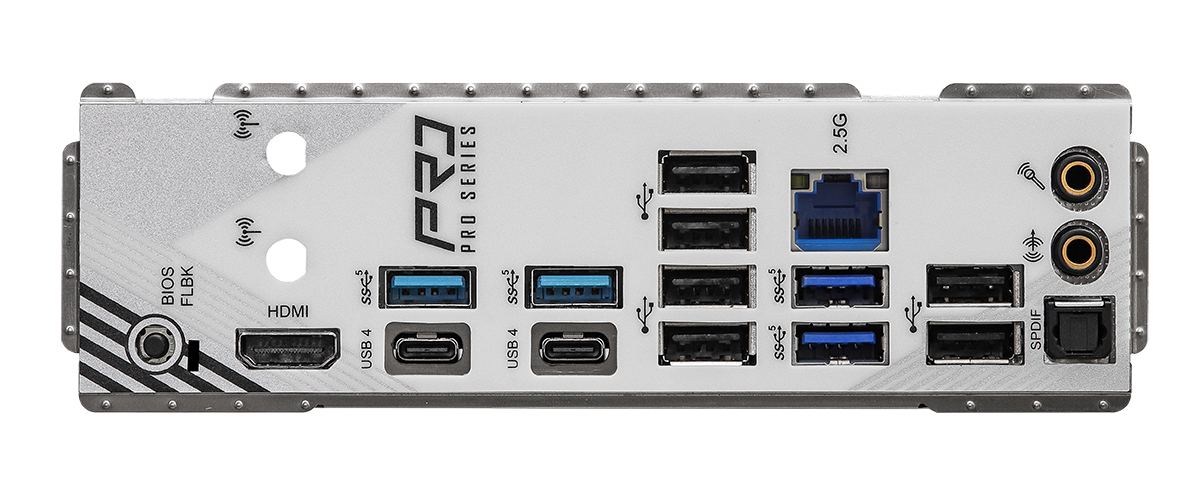

Rear panel ports

Number of USB 3.2 Gen 2x2 Type-C ports 2
Line out Yes
Microphone input Yes
Number of HDMI ports 1
Number of USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports 4
USB 2.0 connectors 6
Ethernet LAN ports (RJ-45) 1
S/PDIF output port Yes

Expansion slots

PCI Express x16 (Gen 5.x) slots 1
