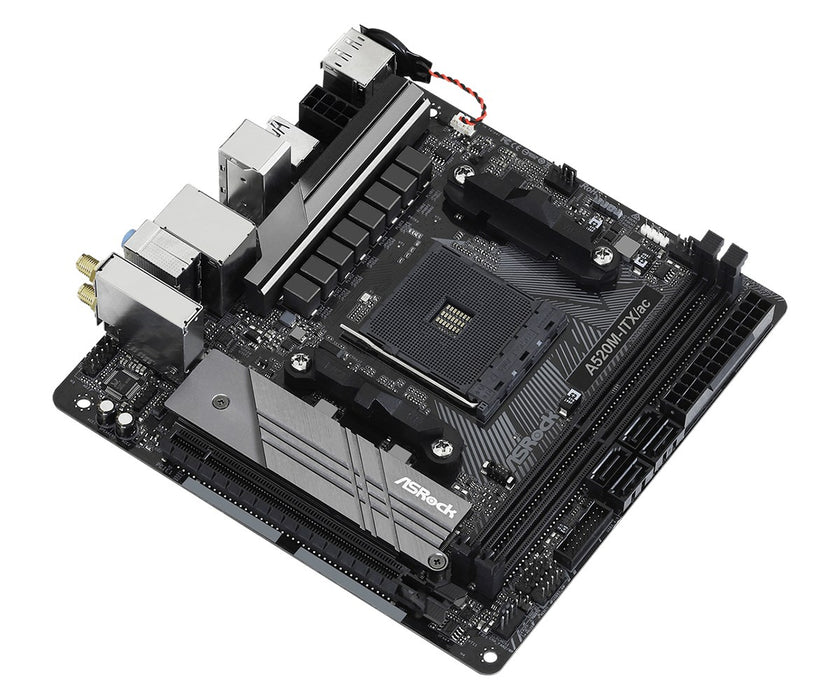

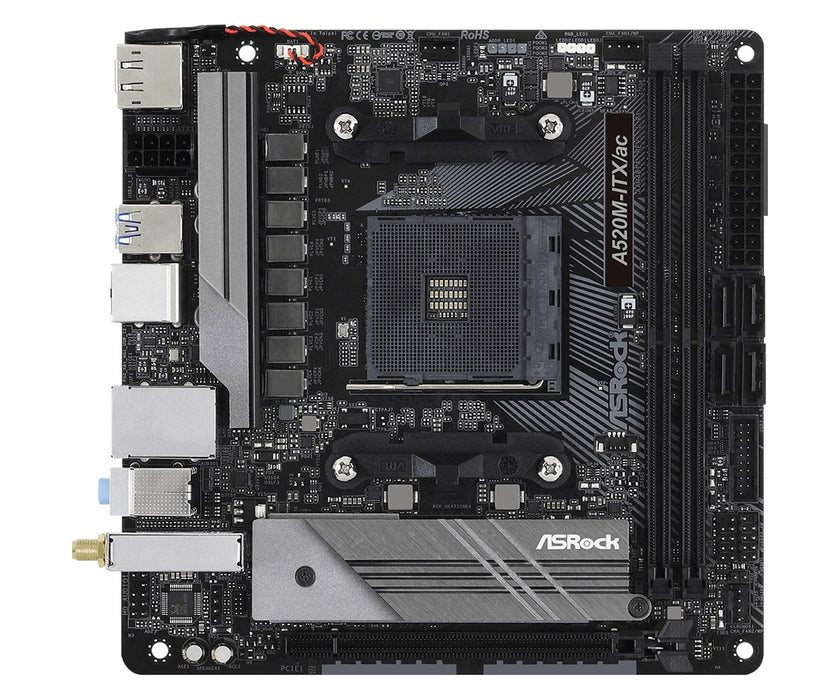

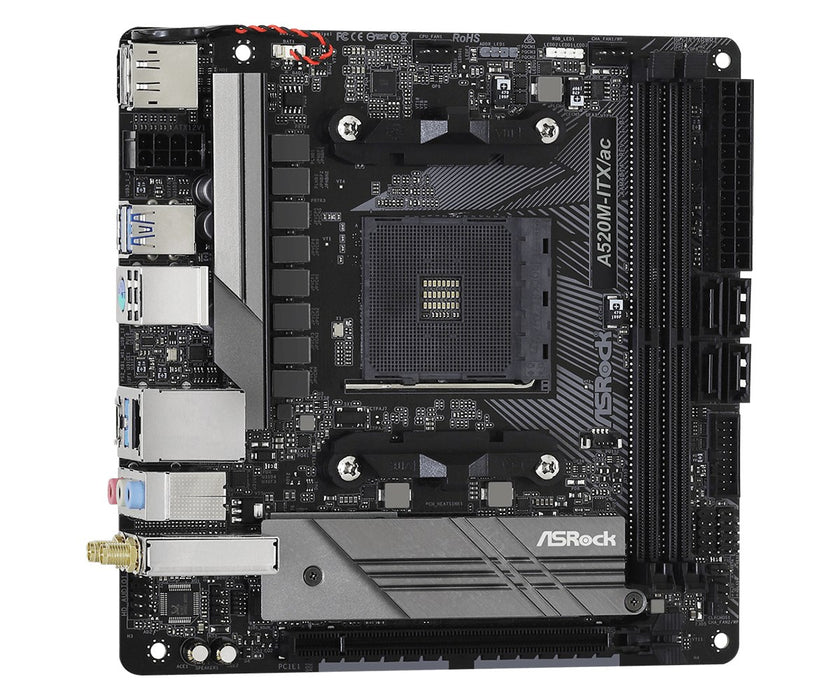

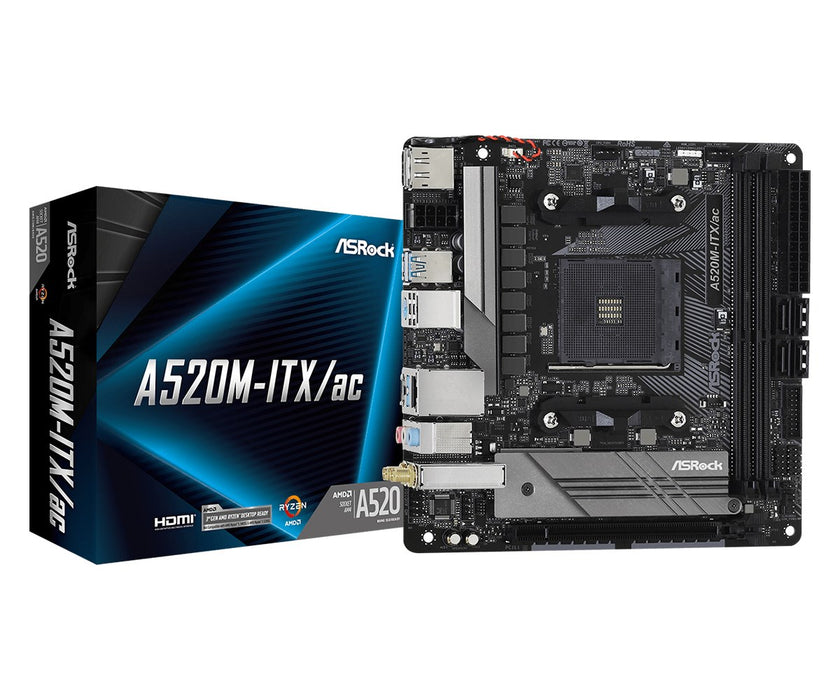

Asrock A520M-ITX/ac Socket AM4 micro ATX

Asrock A520M-ITX/ac Socket AM4 micro ATX

ASROCK
€131,90 - €131,90
€131,90
€131,90 - €131,90
€131,90
SKU DGT0045731
Ships within 10 business days Please note that quantities are limited and dynamic. At the time of ordering, the item may be out of stock. We will notify you in a timely manner in the event that we are unable to fulfill the order.

Избери период за изплащане и виж месечната вноска

Месечна вноска Обща сума за плащане ГПР Лихва Банка

Description

8-phase power design - Features sturdy components and perfectly smooth power delivery to the processor. It also improves performance with the lowest temperatures for advanced gamers. Premium 60A powerful choke - Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing increased and improved Vcore voltage to the motherboard. AMD SMART ACCESS MEMORY - Conventional computer system processors access only a small portion of graphics memory and limit system performance. With AMD Smart Access memory, the data channel is expanded to use the full potential of GPU memory, removes bottlenecks and increases performance. This motherboard has a pair of built-in Type-A and Type-C USB 3.2 Gen1 ports, built on the rear I/O to support next-generation USB 3.2 Gen1 devices and 5 Gbps data transfer speeds. Finished with two of the most popular types of connectors! Equipped with HDMI + DisplayPort combo, so you have more options for connecting graphics.

  • BIOS: 128Mb AMI UEFI Legal BIOS with GUI support; Supports "Plug and Play"; ACPI 5.1 compliance wake up events; Supports jumperfree; SMBIOS 2.3 support; CPU, CPU VDDCR_SOC, DRAM, VPPM, +1.8VSB, VDDP Voltage Multi-adjustment
  • M.2 slot: 1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
  • Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec), Supports Surge Protection
  • Warranty: 36 months
  • Other: Certificate: FCC, CE, ErP/EuP ready (ErP/EuP ready power supply is required)

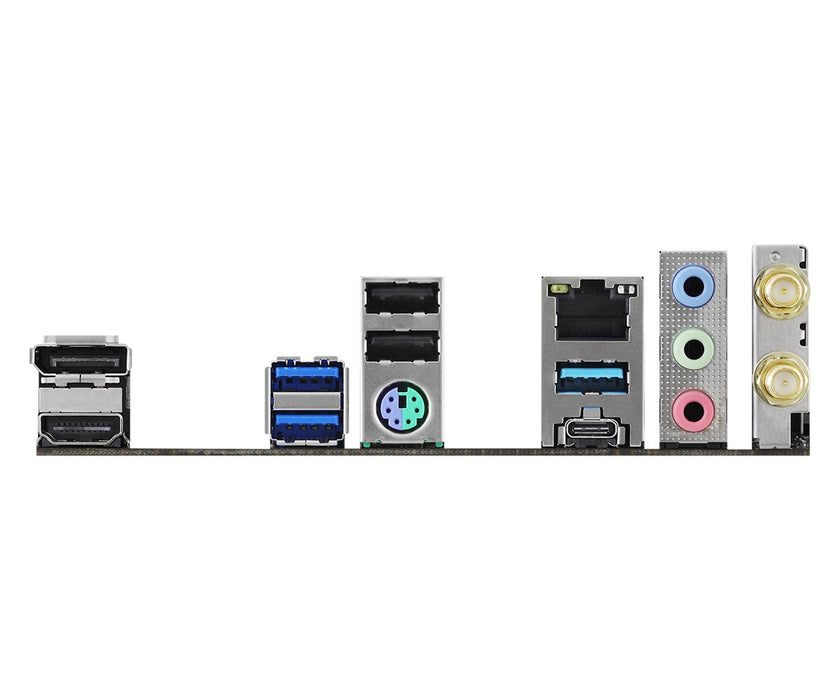

  • Interface: 2 x Antenna Ports, 1x PS/2 Mouse/Keyboard Port, 1x HDMI, 1x DisplayPort 1.4, 2x USB 2.0, 3x USB 3.2 Gen1 Type-A Ports, 1x USB 3.2 Gen1 Type-C, 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), HD Audio Jacks: Line in/Front Speaker/Microphone
  • Connectors: 1xRGB LED Header, 1xAddressable LED Header, 1xCPU Fan Connector (4-pin), 2xChassis/Water Pump Fan Connectors(4-pin), 1x24 pin ATX Power Connector, 1x8pin 12V Power Connector, 1xFront Panel Audio Connector, 1xUSB 2.0 Header, 1xUSB 3.2 Gen1 Header
  • Network: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H, Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
  • Operating system: Microsoft Windows 10 64-bit
  • Memory, slots: 2 x DDR4 DIMM Slots; Dual Channel DDR4 Memory Technology; Max. capacity of system memory: 64GB
  • Processor: Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series and 5000 Series Desktop Processors; Digi Power design; 8 Power Phase design
  • Series: ITX/ac
  • Slots: 1x PCI Express 3.0 x16 Slot (PCIE1: x16 mode). 1x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac PCIe WiFi module (on the rear I/O)
  • Software: ASRock Motherboard Utility (A-Tuning), SRock Polychrome SYNC, ASRock XFast LAN
  • Special features: ASRock Super Alloy, Intel 802.11ac WiFi, ASRock Full Coverage M.2 Heatsink, ASRock Ultra M.2 (PCIe Gen3x4), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
  • Form factor: Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm; Solid Capacitor design
  • Chipset: AMD A520
